AIM-38CT

Toimitusaika 21-30pv
Tuotenro
AIM-38CT

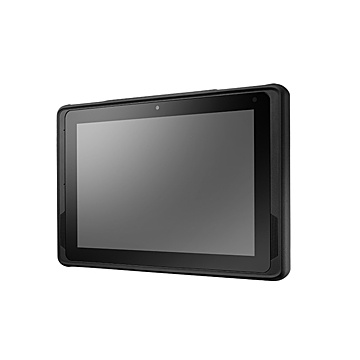

10.1" Industrial-grade Tablet Atom x7-Z8750/ 4GB/ 64GG SSD/ WiFi/4G LTE/ BT/ NFC/ Win10 or Androind 6.0
Ominaisuudet
* Intel® Atom™ processor for Windows 10 IoT & Android 6.0 operating systems
* 10.1" WUXGA full HD display with scratch-resistant Corning® Gorilla® Glass 3 and multi-touch PCAP control
* WLAN, BT, NFC & 4G LTE technologies for seamless communication
* Optional docking stations include vehicle, VESA, and desk docking stations
* Optional extension modules such as 1D/2D barcode scanners and LAN+COM module
* Optional accessories include the stylus, hand strap, and shoulder strap
* Additional modules and accessories can be customized according to application
Spesifikaatiot
System
Processor Intel® Atom™ x7-Z8750, 1.6GHz
CPU Performance 1.6GHz
Security Hardware
Chipset
Storage eMMC
Storage Support 64GB
Memory LPDDR3
Memory (RAM) 4GB
Display
Screen Size 10.1"
Screen Resolution 1920 x 1200
Display Ratio
Contrast Ratio
Brightness 300 nits / 850 nits
Viewing Angle
Number of Colors
Touch Screen
Touchscreen 10-Point P-CAP multiple touch Corning® Gorilla® Glass 3
I/O Ports
USB 2.0
USB 3.0 1x USB 3.0
Serial
Video 1x microHDMI
Ethernet
Other Ports 1 x Combo audio
Operating System
Operating System Windows 10 IoT, Android 6.0
Power
DC Input / Source Voltage 230V AC adapter
19V DC output
Battery Hot-swappable smart battery with capacity LED indicators.
Capacity: 26 WHr
Operating time: Approx. 5.5hrs
Expansion Slots
Expansion 1x SIM
1x 16pin pogo pin connector for Docking Station

Extended I/O:
1 x AIM module pogo pin connector at rear,
supporting AIM extension modules
Wireless Communication
WLAN / Bluetooth IEEE 802.11a/b/g/n/ac, Bluetooth® v4.1
NFC 13.56 Mhz
WWAN 4G LTE module with AGPS
Operating Temperature
Operating Temperature -10ºC to 50ºC
Humidity Range 10% to 90% non-condensing
Cooling System / Thermal Solution
Thermal Solution Passive - Fanless
Dimensions / Weight
Weight (kg) 980g
Dimensions 280 x 18.3 x 180.1 mm
Enclosure
Bezel IP65 Protected
Material
Mounting
Note *
Peripherals & Devices
Accessories AIM 10 VESA Advanced Dock
AIM 10 VESA Dock with USB
AIM 10 Desk Advanced Docking Station
AIM 10 Desk Docking Station
Barcode Scanner (20°)
Barcode Scanner (70°)
UHF RFID Reader
Hand Strap
Extra Features
Certification
Certification CE, CB, VCCI, UL60950 (ITE), UL2054, UN38.3, IEC62133, PSE for battery pack,
