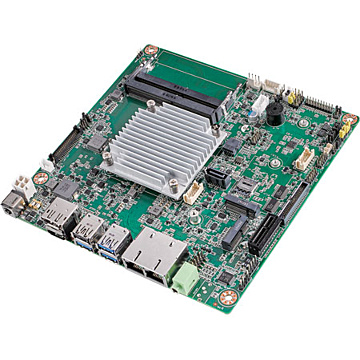

AIMB-218

Tuotenro
AIMB-218D-S0A1E
Toimitusaika 21-30pv
Intel® Pentium/Celeron Quad Core/Dual Core Mini-ITX with DP++/HDMI/eDP/LVDS, 8 USB, 6 COM, and Dual LAN
  • Supports Intel Pentium/Celeron processor
  • Two 260-pin SO-DIMM up to 32 GB DDR4 3200 MHz SDRAM
  • Supports, DP++ , HDMI, eDP(or LVDS)
  • Supports 1x M.2 (B-Key) and 1x M.2 E-Key (or 1x PCIe), 6 COMs, 3 USB 3.2 Gen2 & 5 USB 2.0, dual LAN.
Form Factor
Form Factor Mini-ITX

System
Processor Intel® Pentium® Processor J6425, 4-Core
Integrated Graphics Intel Gen 11 Graphics Engines
Security Hardware
Chipset
Storage 1 x SATA-600
Storage Support
Memory 2 x 260-pin SO-DIMM DDR4 max 32GB
Graphics Intel HD graphics Integrated
I/O Ports
USB 2.0 4 x USB 2.0
USB 3.0
USB 3.1 3 x USB 3.1 Gen2 (rear IO)
Serial 6 x RS-232 (COM2 RS-232/422/485)
Video 1 x HDMI 1.4b
1 x DisplayPort+
Ethernet 2 x 10/100/1000 Mbps (Realtek 8111H)
Other Ports DIO 8-channel programmable
Line-Out
1 x PS/2 keyboard and mouse
Expansion
Expansion Interface E key for wireless module (Type: 2230)
B key for storage and LTE module, only support PCIex1 signal (Type: 2242/2280)
1 x PCIe x1
Operating System
Operating System Windows 10
Power
DC Input / Source Voltage Single voltage 12V DC input; 1 x External DC jack; 1 x Internal 4-pin (2x2) power connector; Supports AT/ATX mode
Operating Temperature
Operating Temperature Operating Temperature 0°C to 60°C
Humidity Range 10% ~ 95%, non-condensing
Dimensions / Weight
Weight (kg) 0.5kg
Dimensions 170 x 170 mm
Certification
Certification CE
Lisätietoja
Valmistaja Advantech
Socket SoC
Form Factor Mini-ITX
