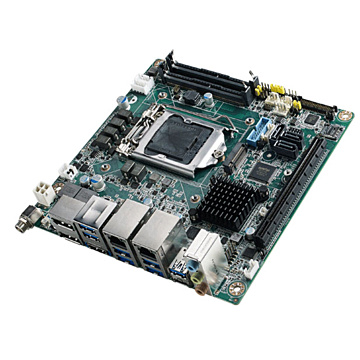

AIMB-276G2
Tuotenro
AIMB-276G2-01A1E
Toimitusaika 21-30pv
8th/9th Gen Intel® Core™ i7/i5/i3 LGA1151 Mini-ITX with HDMI2.0a/Dual DP++/LVDS(or eDP), 2 x COM, Dual LAN, SATAIII, 6 x USB3.1 & 4 x USB3.0, 2 x M.2
- Supports 8th/9th Generation Intel® Core™ i processor (LGA1151) with Intel Q370 chipset
- Two 260-pin SO-DIMM up to 64GB DDR4 2666 MHz SDRAM
- Supports triple display of Dual DP++/HDMI 2.0a/LVDS( or eDP)
- Supports PCIe x16 (Gen 3), 1 x M.2 B key + 1 x M.2 E key, 6 USB 3.1 & 4 USB 3.0, and 3 SATA III
- Supports wide range 12V~24V DC Input
- Supports Intel vPro, AMT 12.0, Software RAID 0,1,5,10, TPM 1.2 / 2.0 (optional)
- Support SUSI, WISE-DeviceOn and Edge AI Suite.
| Form Factor | |
| Form Factor | Mini-ITX |
| System | |
| Processor | Intel® 8th Gen Core™ i processor/Pentium/Celeron (LGA1151) |
| Integrated Graphics | Intel Gen 11 Graphics Engines |
| Security Hardware | |
| Chipset | Intel Q370 |
| Storage | 1 x SATA-600 |
| Storage Support | |
| Memory | 2 x 260-pin SO-DIMM DDR4 max 64GB |
| Graphics | Intel® UHD Graphics 630 |
| I/O Ports | |
| USB 2.0 | 4 x USB 2.0 |
| USB 3.0 | |
| USB 3.1 | 6 x USB 3.1 |
| Serial | 2 x RS-232 (COM2 RS-232/422/485) |
| Video | 1 x HDMI 2.0a 2 x DisplayPort |
| Ethernet | 2 x 10/100/1000 Mbps (Intel 211AT) |
| Other Ports | DIO 8-channel programmable 3 Audio Line-Out, Line-In, Mic-in |
| Expansion | |
| Expansion Interface | 1 x B key for SSD and 3G/4G (Type: 2242, 3042mm) 1 x E key for wireless (Type: 2230mm) 1 x PCIex16 |
| Operating System | |
| Operating System | Windows 10 |
| Power | |
| DC Input / Source Voltage | 12V DC Input plug |
| Operating Temperature | |
| Operating Temperature | Operating Temperature 0°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 0.5kg |
| Dimensions | 170 x 170 mm |
| Certification | |
| Certification | CE |
| Valmistaja / Brand | Advantech |
|---|---|
| Socket | LGA 1151 |
| Form Factor | Mini-ITX |
