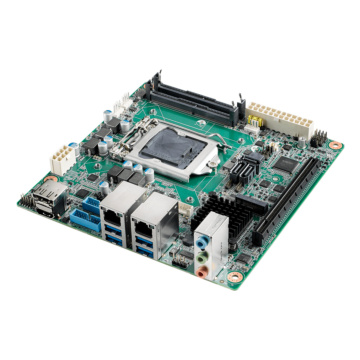

AIMB-277G2-FLA1E
Tuotenro
AIMB-277G2-FLA1E
Toimitusaika 21-30pv
10th Gen Intel® Core™ i9/i7/i5/i3 LGA1200 Mini-ITX w/ HDMI2.0a/DP/VGA/LVDS(or eDP), 2x COM, Dual LAN, 3 SATAIII, 4 USB3.2 Gen2, 4 USB3.2 Gen1, 2x M.2
- Supports 10th Generation Intel® Core™ i processor (LGA1200) with Intel Q470E chipset
- Two 260-pin SO-DIMM up to 64GB DDR4 2933 MHz SDRAM
- Supports triple display of HDMI 2.0a/DP++/VGA/LVDS( or eDP)
- Supports PCIe x16 (Gen 3), 1x M.2 M key + 1x M.2 E key, 4x USB 3.2 Gen2 + 4x USB 3.2 Gen1, and 4x SATA III
- Supports Intel vPro, AMT, Software RAID 0,1,5,10, TPM 2.0, 3.2W Amplifier
- Supports ATX power
- Support SUSI, WISE-DeviceOn and Edge AI Suite.
| Form Factor | |
| Form Factor | Mini-ITX |
| System | |
| Processor | Intel® 10th generation Core™ I processor/Pentium®/Celeron® (LGA1200) |
| Integrated Graphics | Intel HD Graphic |
| Security Hardware | TPM2.0 |
| Chipset | Intel Q470E |
| Storage | 3 x SATAIII |
| Storage Support | |
| Memory | 2 x 260pin DDR4 SO-DIMM, 32GB/per DIMM max |
| I/O Ports | |
| USB 2.0 | 1 x USB 2.0 2 x USB2.0 internal |
| USB 3.0 | 3 x USB3.0 |
| USB 3.1 | |
| Serial | 2 xRS-232/422/485 |
| Video | 1 x DP++ 1 x HDMI 1 x VGA Dual LVDS |
| Ethernet | 2 x 10/100/1000 Mbps * Intel I219LM, GbE2: Intel I211 |
| Other Ports | Audio Realtek ALC888S GPIO |
| Expansion | |
| Expansion Interface | 1 x PCIe x16 1 x M.2 M key (Type: 2280) 1 x M.2 E key,(Type: 2230) |
| Operating System | |
| Operating System | WIN10, LINUX |
| Power | |
| DC Input / Source Voltage | ATX 24-pin + 8-pin ATX12V |
| Operating Temperature | |
| Operating Temperature | Operating Temperature 0°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 0.7kg |
| Dimensions | 170 x 170 mm |
| Certification | |
| Certification | CE |
| Valmistaja / Brand | Advantech |
|---|---|
| Socket | LGA 1200 |
| Form Factor | Mini-ITX |
