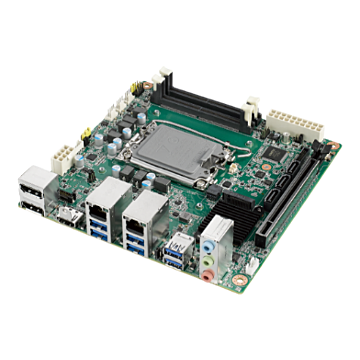

AIMB-278Q-00A1

Tuotenro
AIMB-278Q-00A1
Toimitusaika 21-30pv

12th Gen Intel® Core™ Processor (Alder Lake), MiniITX with Q670E, PCIex16 Gen5, 2.5GbE

  • 12th Gen Intel® Core™ Desktop Processors (LGA1700), Up to 16Core. Support Q670E/H610E chipset
  • Dual channel DDR5 4800MHz, max. 64GB with two SODIMMs
  • Super Speed I/O: PCIe x16 Gen5 (32GT/s), USB3.2 Gen2 (10Gbps), 2.5GbE
  • Quad independent 4K displays with 2 DP1.4, 1 HDMI, and 1 eDP
  • Rich expansion: M.2 M key for NVMe SSD, M.2 E key for wireless, 3 SATA(RAID 0,1,5)
  • TPM2.0 support
  • Windows 10 LTSC & Ubuntu 20.04 LTS; SUSI API and WISE-DeviceOn
Form Factor
Form Factor Mini-ITX


System
Processor 12th Gen Intel® Core™ Desktop Processors (LGA1700)
Security Hardware TPM2.0 (optional)
Chipset Q670E chipset
Storage 3 x SATA-600
1 x M.2 M-key NVME
Memory 2 x 262-pin DDR5-4800 DIMM, up to 64GB
Graphics Intel UHD Graphics 770
I/O Ports
USB 2.0 2 x USB 2.0 (internal)


USB 3.2 6 x USB3.2


Serial 1 x RS-232
1 x RS-232/422/485
Video 2 x DisplayPort
1 x HDMI
Ethernet 2 x 10/100/1000 Mbps Ethernet (Intel® i225-LM & Intel® i219-LM)
Other Ports PS/2 KB/Mouse
DIO
Audio MIC-in/Line-in/Line-out
Expansion
Expansion Interface 1 x PCIe x16 (Gen5)
1 x M2 E-key 2230
Operating System
Operating System Windows11,Windows10 , Linux
Power
Power Input ATX power
Power Requirements
Operating Temperature
Operating Temperature Operating Temperature 0°C to 60°C
Humidity Range 10% ~ 95%, non-condensing
Dimensions / Weight
Weight (kg) 1kg
Dimensions 170mm x 170mm
Certification
Certification CE
Lisätietoja
Valmistaja / BrandAdvantech
SocketLGA1700
Form FactorMini-ITX
