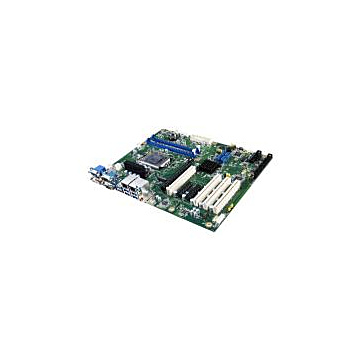

AIMB-707

Tuotenro

AIMB-707G2-00A2

Toimitusaika 21-30pv

LGA1200 10th Generation Intel® Core™ i9/i7/i5/i3 & Pentium®/Celeron® ATX with DVI/VGA, DDR4, USB 3.2, M.2, 6 COM

Intel® 10th generation Core™ i9/i7/i5/i3 & Pentium®/Celeron® processor with H420E chipset
Dual channel (Non-ECC) DDR4 2400/2666/2933 up to 64 GB
Support VGA and DVI display
M.2, SATA 3.0, USB 3.2, dual GbEs
5 RS-232 and 1 RS-232/422/485 serial ports
1 PCIe x16 (Gen 3) and 2 PCIe x4 (x1 Gen 3 link), and 4 PCI expansion slots

Form Factor
Form Factor	Industrial ATX

System
Processor	Intel® 10th generation Core™ i9/i7/i5/i3 & Pentium®/Celeron
Security Hardware	TPM2.0 (optional)
Chipset	H420E chipset
Storage	4 x SATA-600 1 x M.2 Key M 2280
Memory	4 x 288-pin DDR4-2933/2666 DIMM, up to 128GB
Graphics	Intel HD Graphics
I/O Ports
USB 2.0	2 x USB 2.0 ,2 x USB 2.0 (internal)

USB 3.2	6 x USB3.2 Gen 1

Serial	2 x RS-232 1 x RS-232/422/485 (pin header) 3 x RS-232 (pin header)
Video	1 x DisplayPort 1 x VGA 1 x DVI-D
Ethernet	2 x 10/100/1000 Mbps Ethernet (Intel® i210-AT & Intel® i219-LM)
Other Ports	PS/2 KB/Mouse GPIO Audio MIC-in/Line-out
Expansion
Expansion Interface	1 x PCIe x16 (Gen3) 2 x PCIe x4 (link x1) 4 x PCI (32bit)
Operating System
Operating System	Windows10 , Linux
Power
Power Input	Standard 12V ATX power
Power Requirements
Operating Temperature
Operating Temperature	Operating Temperature 0°C to 60°C
Humidity Range	10% ~ 95%, non-condensing
Dimensions / Weight
Weight (kg)	1kg
Dimensions	304,8mm x 244mm
Certification
Certification	CE
