AIMB-788

Tuotenro

AIMB-788G2-00A1

Toimitusaika 21-30pv

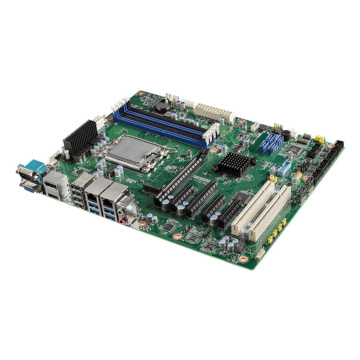

LGA1700 12th/13th Generation Intel® Core™ i9/i7/i5/i3 ATX Motherboard with DP/HDMI/VGA, DDR4, USB 3.2, M.2

Intel® 12th/13th generation Core™ i9/i7/i5/i3 & Pentium®/Celeron® processor with Q670E chipset
Four DIMM sockets up to 128 GB DDR4 3200
Triple display DP/HDMI/VGA and dual GbE LAN
M.2, SATA RAID 0, 1, 5, 10, USB 3.2 Gen 2
Advantech iBMC remote out-of-band power management solution on DeviceOn
Qualified for AWS (Amazon Web Service) IoT Greengrass
Note 1: Legacy platform is not supported.

Form Factor
Form Factor	Industrial ATX

System
Processor	Intel® 12th/13th generation Core™ i9/i7/i5/i3
Security Hardware	TPM2.0 (optional)
Chipset	Q670E chipset
Storage	4 x SATA-600 1 x M.2 Key M 2280
Memory	4 x 288-pin DDR4-3200 DIMM, up to 128GB
Graphics	Intel UHD Graphics
I/O Ports
USB 2.0	4 x USB 2.0
	4 x USB 2.0 (pin header)
USB 3.2	4 x USB3.2

Serial	1 x RS-232 1 x RS-232/422/485 (pin header) 4 x RS-232 (pin header)
Video	1 x DisplayPort 1 x VGA 1 x HDMI
Ethernet	2 x 10/100/1000 Mbps Ethernet (Intel® i210-AT & Intel® i219-LM)
Other Ports	GPIO 8bit Audio MIC-in/Line-out
Expansion
Expansion Interface	1 x PCIe x16 (Gen4) 1 x PCIex8 (x4 link) 3 x PCIe x4 (Gen3) 2 x PCI (32bit)
Operating System
Operating System	Windows10 , Windows 11, Linux
Power
Power Input	Standard 12V ATX power
Power Requirements
Operating Temperature
Operating Temperature	Operating Temperature 0°C to 60°C
Humidity Range	10% ~ 95%, non-condensing
Dimensions / Weight
Weight (kg)	1kg
Dimensions	304,8mm x 244mm
Certification
Certification	CE
