ARCDIS-118AP
Tuotenro
ARCDIS-118AP
Toimitusaika 21-30pv

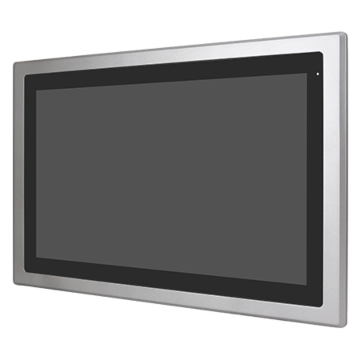

18.5" TFT Industrial monitor, IP65 front, Die-cast chassis, VGA&DVI, HDMI, DP, 1366 x 768, 9-36V DC
Ominaisuudet
* 18.5" TFT-LCD Projected Capacitive Touch
* Wide range DC 9~36V power input
* IP66 compliant front panel
* VGA/DVI-D/HDMI/DP input
* System power LED light
* Wide range DC 9~36V power input
* IP66 compliant front panel
* VGA/DVI-D/HDMI/DP input
* System power LED light
Spesifikaatiot
| Display | |
| Screen Size | 18.5" TFT LCD |
| Screen Resolution | 1366x768 |
| Display Ratio | 16:: 9 |
| Contrast Ratio | 1000 ::1 |
| Brightness | 300nits |
| Viewing Angle | 170/160 |
| Number of Colors | 16.7M |
| Touch Screen | |
| Touchscreen | PCAP |
| I/O Ports | |
| Display input | 1x VGA 1x DVI 1x HDMI 1x DP |
| OSD | OSD on rear side On board controller, extendable keypad from connector |
| Touchscreen | USB connection |
| Other Ports | 1 x Audio line-in phone jack |
| Operating System | |
| Operating System | Windows |
| Power | |
| DC Input / Source Voltage | DC 9~36V 230V AC adapter |
| Power Management | |
| Multimedia | |
| Integrated Speakers | - |
| Operating Temperature | |
| Operating Temperature | 0ºC to 50ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Fanless |
| Dimensions / Weight | |
| Weight (kg) | 6.4 kg |
| Dimensions | 499.6 x 314.6 x 59.9 mm |
| Enclosure | |
| Bezel | IP66 compliant front panel |
| Material | Diecast Aluminum |
| Mounting | Panel , VESA 100 |
| Note * | |
| Certification | |
| Certification | CE / FCC |
| Näytön koko | 18.5" |
|---|---|
| Näytön signaali (input) | VGA, DVI-D, HDMI, Display Port |
