ARCDIS-124AP

Toimitusaika 21-30pv
Tuotenro
arcdis-124ap

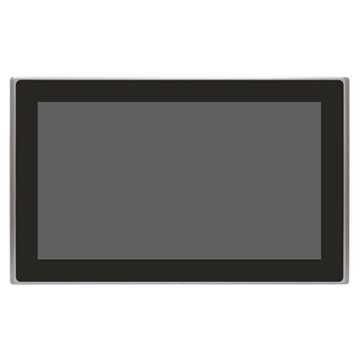

23.8" TFT Industrial monitor, IP65 front, Die-cast chassis, VGA&DVI, HDMI, DP, 1920 x 1080, 9-36V DC
Ominaisuudet
* 23.8" TFT-LCD Projected Capacitive Touch
* Wide range DC 9~36V power input
* IP65 compliant front panel
* VGA/DVI-D/HDMI/DP input
* System power LED light
Spesifikaatiot
Display
Screen Size 23.8" TFT LCD
Screen Resolution 1920x1080
Display Ratio 16:: 9
Contrast Ratio 3000 ::1
Brightness 250 nits
Viewing Angle 178/178
Number of Colors 16.7M
Touch Screen
Touchscreen PCAP
I/O Ports
Display input 1x VGA
1x DVI
1x HDMI
1x DP
OSD OSD on rear side
On board controller, extendable keypad from connector
Touchscreen USB connection
Other Ports 1 x Audio line-in phone jack
Operating System
Operating System Windows
Power
DC Input / Source Voltage DC 9~36V
230V AC adapter
Power Management
Multimedia
Integrated Speakers -
Operating Temperature
Operating Temperature 0ºC to 50ºC
Humidity Range 10% to 95% non-condensing
Cooling System / Thermal Solution
Thermal Solution Fanless
Dimensions / Weight
Weight (kg) 9 kg
Dimensions 640 x 395 x 46 mm
Enclosure
Bezel IP66 compliant front panel
Material Diecast Aluminum
Mounting Panel , VESA 200x100
Note *
Certification
Certification CE / FCC
