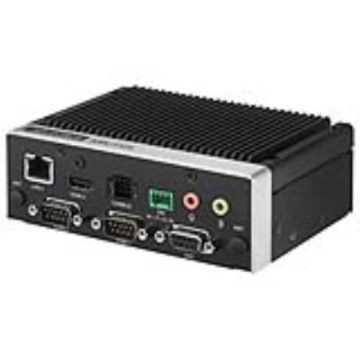

ARK-1125H
Tuotenro
ARK-1125H
Toimitusaika 21-30pv
Intel® Processor N200 QC SoC with Dual HDMI, Dual GbE, Dual Serial Ports, Dual CANBus, Remote Switch, USB x4
- Intel® Processor N-series N200 QC SoC
- DDR5-4800 SO-DIMM memory support up 16G
- Dual HDMI independent display support 4K resolution
- M.2 E Key and B Key for storage and wireless module installation
- TPM for system security by option
- -30 ~ 60 °C extended operating temperature
- 12V lockable DC jack power input
- Advantech DeviceOn support
- RED Certified with selected Wireless Modules
| System | |
| Processor | Intel® Processor N200 |
| Security Hardware | TPM2.0 |
| Chipset | SoC |
| Storage | M.2 2280 B-key (PCIex1) |
| Storage Support | |
| Memory | 1 x 262 pin DDR5-4800 non-ECC SO-DIMM, up to 16GB |
| Audio | Realtek ALC888S, High Definition Audio, Line-out, Mic-in |
| Graphics | Intel® graphics |
| I/O Ports | |
| USB 2.0 | 2x USB2.0 |
| USB 3.0 | 2x USB 3.2 |
| Serial | 2x RS-232/422/485 |
| Video | 2 x HDMI |
| Ethernet | 2 x 2.5GbE Ethernet (Intel i226) |
| Other Ports | 8bit GPIO Audio 2 x CAN-port |
| Expansion | |
| Expansion Interface | 1x M.2 2230E key 1x M.2 2280 B key with nano SIM holder |
| Operating System | |
| Operating System | Windows® 10, LINUX |
| Power | |
| DC Input / Source Voltage | 12VDC |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +70°C (with Wide-Temp SSD, Memory) |
| Humidity Range | 10% ~ 90%, non-condensing |
| Vibration | 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Shock | 30 G, IEC 60068-2-27, half sine, 11 ms duration |
| Cooling System / Thermal Solution | |
| Thermal Solution | |
| Dimensions / Weight | |
| Weight (kg) | 0.7 kg |
| Dimensions | 133 x 47 x 94 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Din-Rail, Wall-mount |
| Certification | |
| Certification | CE, FCC, CCC, BSMI |
| Valmistaja / Brand | Advantech |
|---|---|
| Jäähdytys | Fanless |
| Operating Temp | Wide Temp -40..70C |
