ASMB-786G2-00A1

Tuotenro

ASMB-786G2-00A1

Toimitusaika 21-30pv

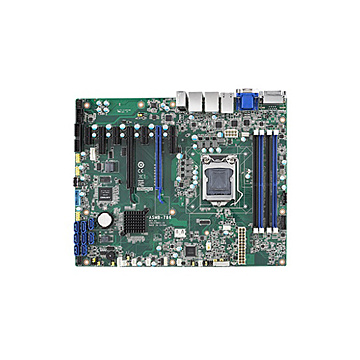

LGA 1151 Intel® 8th Generation Core & Xeon® ATX Server Board with 4 DDR4, 7 PCIe, 4 USB 3.1, 8 SATA3, Quad/Dual LANs, IPMI

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Tuotekuvaus

Datalehti

Ominaisuudet

* Supports LGA 1151 Intel® Xeon® & 8th Generation Core™ i7/i5/i3 processors
* DDR4 2666/2400/2133 MHz ECC/Non-ECC UDIMM up to 64 GB
* 1 Gen 3.0 PCIe x16 link, two PCIe x4, and three PCIe x1 slots
* Triple displays - DVI-D, VGA and HDMI 2.0 ports
* 8 SATA3 ports and four USB 3.1 ports
* Rackmount optimized placement with positive air flow design
* 0 ~ 60° C ambient operation temperature range

Spesifikaatiot

Form Factor
Form Factor	ATX

System
Processor	Intel LGA1151 Xeon E and 8th Gen Core i3/i5/i7 series
Integrated Graphics	Yes
Security Hardware
Chipset	Intel C246
Storage	8 x SATAIII (RAID 0,1,5,10)
Storage Support
Memory	4 x 288-pin UDIMM, max 64GB Dual Channel DDR4 ECC/Non-ECC 2133/2400/2666 MHz
Graphics	Intel HD graphics Integrated
I/O Ports
USB 2.0	7 x USB 2.0
USB 3.0	6 x USB 3.0
Serial	2 x RS-232
Video	1 x DVI-D 1 x VGA 1 x HDMI
Ethernet	2x RJ-45 Gbe, 1 x Intel I219-LM + 1 x Intel I210-AT
Other Ports	PS/2 Keyboard/Mouse 1x LPT
Expansion
Expansion Interface	1 x PCIex16 2 x PCIex4 3 x PCIex1
Operating System
Operating System	Windows 10
Power
DC Input / Source Voltage	24-pin SSI power connector + 8-pin SSI 12 V power connector
Operating Temperature
Operating Temperature	Operating Temperature 0°C to 60°C
Humidity Range	10% ~ 90%, non-condensing
Dimensions / Weight
Weight (kg)	0.8kg
Dimensions	304.8 x 244 mm
Certification
Certification	CE

Lisätietoja

Lisätietoja
Valmistaja / Brand	Advantech
Socket	LGA 1151
Form Factor	ATX
