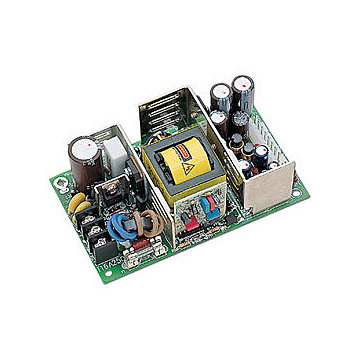

70W DC-DC open frame power supply

Input Range: 10~30VDC

Input Voltage: 10~30VDC with normal line at +24VDC

Input Frequency: 47~63Hz

Input Current: 13A at 10VDC max.

Inrush Current: < 15A at 10VDC input from cold start excluding EMI capactiors

Load Range: With all other outputs within their specified voltage accuracy ranges and 60% rated load conditions, the +5V output is between 5~5.1V. It could last 10 sec. at peak load and 25°C

Ripple And Noise: Peak to peak ripple and noise for +5V is < 50mV, and < 100mV for the other

Line Regulation: < +/-2% for each output at rated load and < +/-10% +12V and +24V input variables

Load Regulation: < +/-1% for +5V, < +/-5% for +12V and -12V

Efficiency: > 70% at nominal line and rated load

Altitude: 10,000 feet

Protection Built-in over voltage protection circuit. Trip point of crowbar circuit is between 5.7~7V hiccup mode against short circuit or over load conditions auto recovery when fault conditions are removed O.C.P. of +5V is 20A max.

Temperature: Operating: 0~50°C
Storage: -40~+85°C

Connectors: DC Input: Terminal blocks
DC Output: Molex 5273-04A or equivalent device
For Fan Use Only: Molex 5045-02A or equivalent device

Dimensions: 12.7 x 7.62 x 3.86 cm at tolerance +/-0.4mm

Pin Output
1~3 +5V
4~6 GND
7 +12V
8 -12V


Safety Standards

Safety: UL 1950, CSA 22.2 No.234, VDE EN 60 950

EMI: FCC Class B, EN55022B

EMS: Level 3 of IEC-802, 803, 804
