BPW-8210

Tuotenro
BPW-8210
Toimitusaika 14-22pv

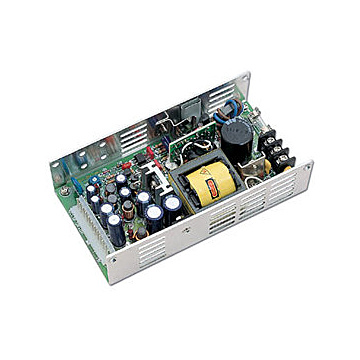

80W 24V DC-DC open frame power supply

Input Range: 18~36VDC

Input Voltage: 18~36VDC

Input Current: 7A at 24VDC max.

Inrush Current: < 10A at 24VDC input from a cold start 25°C excluding EMI suppression capactiors

Load Range: With all other outputs within their accuracy ranges and all output at 60% rated load, the +5V output is between 4.95~5.05V. Max. load can not exceed 80W convection cooling and 100W forced air cooling

Ripple And Noise: Peak to peak ripple and noise for +5V is < 50mV, and < 100mV for the other outputs at rated load, nominal line

Line Regulation: < +/-1% for each output at rated load and +/-10% of input voltage variables

Load Regulation: < +/-1% for +5V, and < +/-5% for -12V, +12V, -5V while changing measured output load from +/-40% to 60% rated load and keeping the outputs at 60% rated load

Efficiency: > 70% at DC24V and rated load

Altitude: 10,000 feet

Protection Built-in over voltage protection circuit. Trip point of crowbar circuit is between 5.7~7V. Hiccup mode against short circuit or over load conditions auto recovery when fault conditions are removed

Temperature: Operating: 0~50°C, can start up -20°C
Storage: -40~+85°C

Connectors: DC Input: Terminal blocks
DC Output: Molex 5273-12A

Dimensions: 15.24 x 8.38 x 3.8 cm with +/-0.8mm and +/-0.4mm tolerance between mounting holes

Pin Output
1~3 +5V
4~7 GND
8~9 +12V
10 -12V
11 -5V
12 N/C


Safety Standards

Safety: UL 1950, CSA 22.2 No.234, VDE EN 60 950

EMI: FCC Class B, EN55022B

EMS: Level 3 of IEC-802, 803, 804
