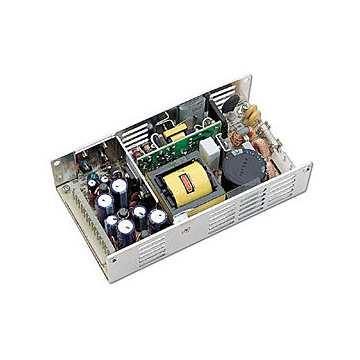

100W AC-DC open frame ATX power supply

Requiring 18FCM forced air cooling

Input Voltage: 85~264VAC
Input Frequency: 47~63Hz
Input Current: 3A at 115VAC or 1.5A at 230VAC max.
Inrush Current: < 30A at 115VAC input or < 60A at 230VAC input at 25°C cold start
Load Range: With the +5V output set between 5.08~5.13V and all output at 60% raged load, while the other outputs are withing the accuracy range; max. total combined output power on the 3.3V and 5V rails is 70W, with the max. load not exceeding 120W
Ripple And Noise: Peak to peak ripple and noise is < 50mV for +5V and 3.3V outputs, 120mV for +5Vsb, < 120mV for +12V, and 200mV for -12V at rated load and nominal input
Line Regulation: < +/-1% for rated load with a +/-10% change in input voltage
Load Regulation: < +/-2% for +5V, < +7~-3% for +12V, < +8~-3% for -12V, < +/-5% for +3.3V with measured output load changing within +/-40% and 60% rated load, while keeping other outputs at 60% rated load
Hold Up Time: > 16ms at 115VAC input and rated load
Power ON/OFF: Turns on power supply when power on/off pin is connected to secondary GND
Efficiency: > 70% at nominal line and rated load
Altitude: 10,000 feet
Protection Hiccup mode against short circuit or over load conditions auto recovery when fault conditions are removed
Temperature: Operating: 0~50°C; output power is 100W with 6CFM forced air, 120W with 18CFM forced air
Storage: -40~+85°C
Connectors: AC Input: Molex 5273-05A withdraw 2-pin or equivalent device
DC Output: TB2 is Molex 5273-14A or equivalent device; TB3 is Molex 5045-03A or equivalent device
Dimensions: 8.38 x 15.24 x 3.97 cm. Tolerance at +/-0.4mm
Pin Output
1~3 +5V
4~8 GND
9~10 +12V
11~13 +3.3V
14 -12V

Safety Standards
Safety: UL 1950, CSA 22.2 No.234, VDE EN 60 950
EMI: FCC Class B, EN55022B
EMS: Level 3 of IEC-802, 803, 804, 805
