CAPA561
Tuotenro
CAPA561-LGA-1
Toimitusaika 21-30pv

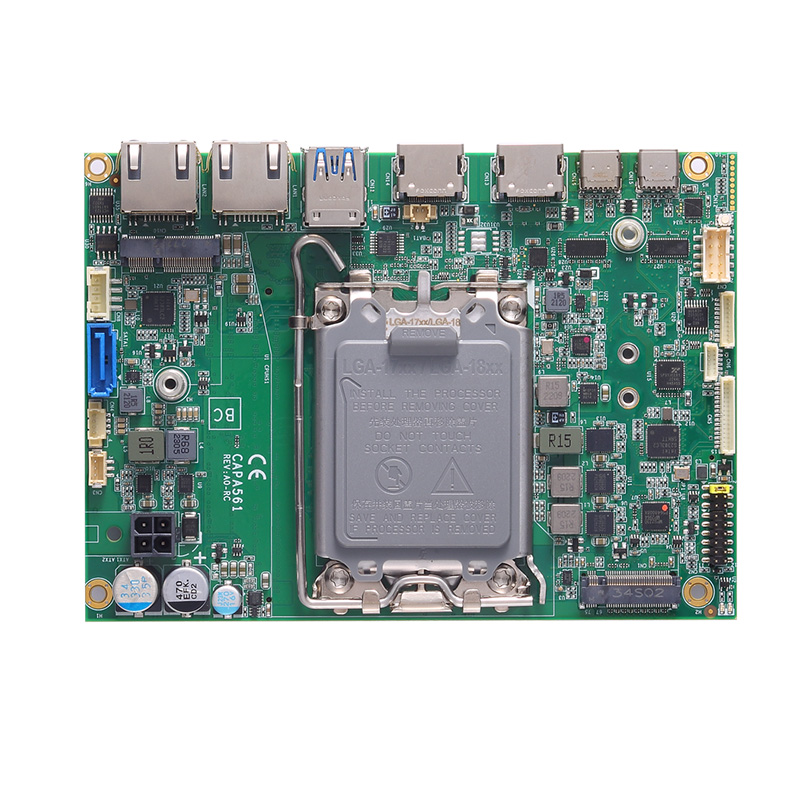

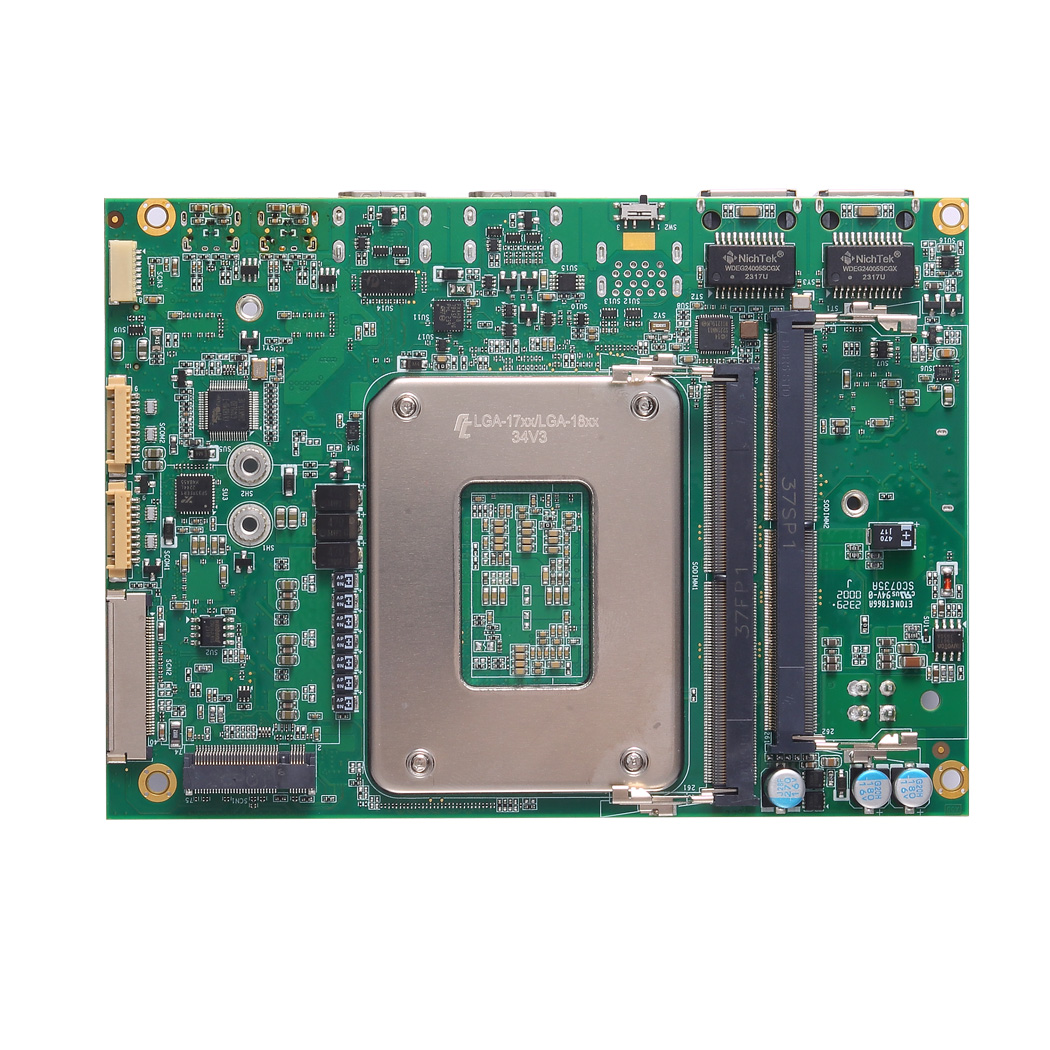

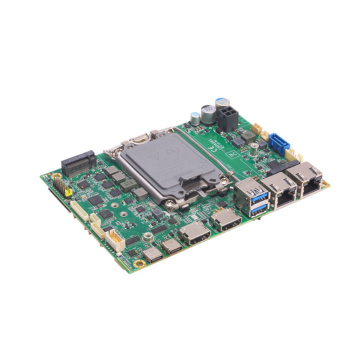

3.5” Embedded SBC with LGA1700 Socket 13th/12th Gen Intel® Core™ i7/i5/i3, Celeron® Processor, DisplayPort in USB Type-C®, HDMI, eDP, GbE LAN, and 2.5GbE LAN
- LGA1700 socket 13th/12th gen Intel® Core™ i7/i5/i3, Celeron® processor
- 2 DDR5 SO-DIMM for up to 64GB of memory
- GbE LAN and 2.5GbE LAN ports
- 3 M.2 expansion slots
| Form Factor | |
| Form Factor | 3.5” Embedded SBC |
| System | |
| Processor | LGA1700 socket 13th/12th gen Intel® Core™ i7/i5/i3, Celeron® processor (TDP up to 15W) |
| Security Hardware | TPM 2.0 on board |
| Chipset | SoC integrated |
| Storage | 1 x SATA-600 |
| Memory | 2 x 262-pin dual-channel DDR5-4800 SO-DIMM, up to 64GB |
| Graphics | |
| I/O Ports | |
| USB 2.0 | 2 x USB 2.0 |
| USB 3.0 | 2 x USB 3.2 in USB Type-A 2 x USB 3.2 in USB Type C, same port supports DP Alt mode |
| Serial | 2 x RS-232/422/485 |
| Video | 2 x HDMI 1.4 1 x eDP 2 x DisplayPort in USB Type C (DP Alt Mode) |
| Ethernet | 1 x 10/100/1000 Mbps Ethernet with Intel® I219 2 x 10/100/1000/2500 Mbps Ethernet with Intel® I226-V |
| Other Ports | DIO 8-channel programmable |
| Expansion | |
| Expansion Interface | 1 x M.2 Key E 2230 (PCIe x1/USB 2.0) 1 x M.2 Key B 3042/3050 (PCIe x1/USB 3.2 Gen2/USB 2.0) 1 x SIM connector via pin header |
| Operating System | |
| Operating System | Windows 10 / Windows 11 |
| Power | |
| DC Input / Source Voltage | 2 x 2-pin connector +12V DC-in AT Auto Power On function supported |
| Operating Temperature | |
| Operating Temperature | Operating Temperature 0°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 0.5kg |
| Dimensions | 146 x 104 mm |
| Certification | |
| Certification | CE |
| Valmistaja / Brand | Axiomtek |
|---|---|
| Socket | LGA1700 |
| Form Factor | 3.5" Embedded |
