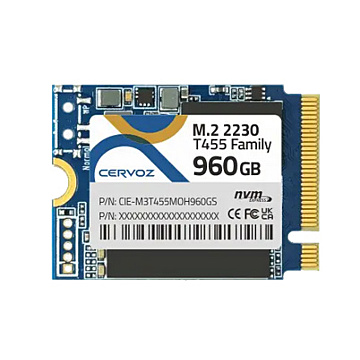

960GB M.2 2230 SSD, NVME, Industrial, T455 Cervoz, M-key, Wide-Temp
Tuotenro
CIE-M3T455MOH960GW
Toimitusaika 21-30pv
Industrial M.2 2230 Embedded Module
- Compliant with PCIe Gen 4x4 interface
- Compliance: NVMe 2.0/PCI Express Base 4.0
- 3D TLC flash memory
- Capacity: 240GB ~ 960GB
- Over-provisioning technology
- Dynamic SLC Cache technology
- Safeguard & Circuitguard
- Write Protect Function (Optional)
- End-to-End data protection
- Thermal throttling
| Form Factor | |
| Form Factor | M.2 PCIe 2230 |
| Product grouping | Industrial M.2 2230 (M-key) Embedded Module |
| System | |
| Interface | PCIe Gen4x4 |
| Connector & Form factor | M.2 2230 (M-key) |
| NAND Flash type | 3D TLC |
| Capacity | 240GB – 960GB |
| Sequential Read | up to 5095MB/s |
| Sequential Write | up to 4740 MB/s |
| DRAM buffer | no |
| ECC Scheme | LDPC |
| MTBF | >3 000 000 h |
| Supply Voltage | 3.3V DC |
| Dimensions | 30mm x 22mm x2.2mm |
| Specialty Technology |
Over-provisioning technology |
| Environmental | |
| Operating Temp | Standard : 0°C ~ 70°C Wide : -40°C ~ 85°C |
| Valmistaja / Brand | Cervoz |
|---|---|
| Capacity | 960GB |
| Interface (Connector) | M.2 M-key |
| Data Interface | NVMe /PCIe Gen4x4 |
| Operating Temp | Extreme Wide Temp -40..85C |
