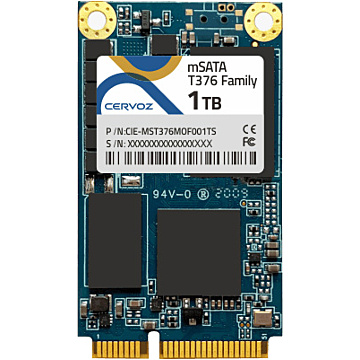

1TB mSATA SSD, TLC Ind, T376, Wide-Temp, Power-Guard

Tuotenro
CIE-MST376MOF001TW
Toimitusaika 21-30pv

T376 Family
Industrial mSATA Embedded Module

  • Compliant with SATA III 6.0Gb/s
  • 3D TLC NAND flash memory
  • Capacity: 128GB ~ 1TB
  • Powerguard Function(Power Loss Protection)
  • Write Protect Function (Optional)
  • Support AES 256-bit Encryption
  • With DRAM Buffer SLC write cache technology
  • Low power consumption
  • Shock resistance and anti-vibration
Form Factor
Form Factor mSATA SSD
Product grouping T376 Family (Powerguard Function)
System
Interface SATA3
Connector mSATA
NAND Flash type 3D TLC NAND
Capacity 128GB256GB/512GB/1TB
Sequential Read up to 560MB/s
Sequential Write up to 480MB/s
DRAM buffer Included
ECC Scheme Applies the LDPC (Low Density Parity Check) of ECC algorithm
MTBF >3,000,000 hours
Low Power Management DIPM / HIPM mode
Supply Voltage +5V DC ± 5%
Dimensions 50.80*29.85*4.00mm
Lisätietoja
Valmistaja / BrandCervoz
Capacity1TB
Interface (Connector)mSATA
Data InterfaceSATA3
Operating TempExtreme Wide Temp -40..85C
