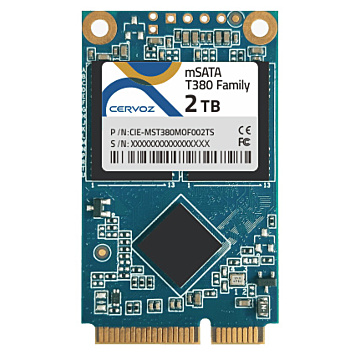

2TB mSATA SSD, TLC Ind, T380, Wide-Temp
Tuotenro
CIE-MST380MOF002TW
Toimitusaika 21-30pv
T380 Family
Industrial mSATA Embedded Module
- Compliant with SATA III 6.0Gb/s
- 3D TLC NAND flash memory
- Capacity: 64GB ~ 2TB
- End-to-End data protection
- SLC write cache technology
- Operating as boot disk
- Static and dynamic wear leveling
- Bad block management
- S.M.A.R.T. & TRIM command
| Form Factor | |
| Form Factor | mSATA SSD |
| Product grouping | T380 Family |
| System | |
| Interface | SATA3 |
| Connector | mSATA |
| NAND Flash type | 3D TLC NAND |
| Capacity | 64GB- 2TB |
| Sequential Read | up to 560MB/s |
| Sequential Write | up to 520MB/s |
| DRAM buffer | Included |
| ECC Scheme | Applies the LDPC (Low Density Parity Check) of ECC algorithm |
| MTBF | >3,000,000 hours |
| Low Power Management | |
| Supply Voltage | +3.3V DC ± 5% |
| Dimensions | 50.80*29.85*4.00mm |
| Valmistaja / Brand | Cervoz |
|---|---|
| Capacity | 2TB |
| Interface (Connector) | mSATA |
| Data Interface | SATA3 |
| Operating Temp | Extreme Wide Temp -40..85C |
