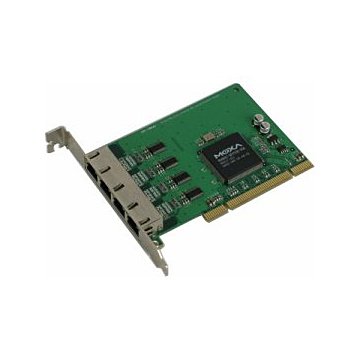

Moxa CP-104JU V2 Universal PCI Serial Board
Toimitusaika 4-22pv
Tuotenro
CP-104JU V2
Tehokas 4 RS-232 sarjaportin PCI-kortti. 8-pinninen RJ45-liitin.
Ominaisuudet
Moxa CP-104JU V2 is a Smart Universal PCI Multiport Serial Board designed for POS and ATM
applications, and for use by industrial automation system manufacturers and system integrators.
Moxa CP-104JU V2 is compatible with all popular operating systems, and each of its 4 RS-232
serial ports supports data rates of up to 921.6 Kbps, and provides full modem control signals,
ensuring compatibility with a wide range of serial peripherals.
In addition, Moxa CP-104JU V2 works with both 3.3V and 5V PCI buses, allowing the board to be
installed in virtually any available PC server.
Main Features
* Over 800 Kbps data throughput, for top performance
* Serial communication speed up to 921.6 Kbps
* 128-byte FIFO and on-chip H/W, S/W flow control
* Universal PCI compatible, with 3.3/5V PCI and PCI-X
* Windows 2003/XP/2000/98/ME, Linux, UNIX driver support
* On-board 15 KV ESD protection
Lisälaitteiksi on saatavilla paljon erilaisia kaapeleita ja kytkimiä, katso tarkemmat tiedot tuotteen
datalehdestä.
applications, and for use by industrial automation system manufacturers and system integrators.
Moxa CP-104JU V2 is compatible with all popular operating systems, and each of its 4 RS-232
serial ports supports data rates of up to 921.6 Kbps, and provides full modem control signals,
ensuring compatibility with a wide range of serial peripherals.
In addition, Moxa CP-104JU V2 works with both 3.3V and 5V PCI buses, allowing the board to be
installed in virtually any available PC server.
Main Features
* Over 800 Kbps data throughput, for top performance
* Serial communication speed up to 921.6 Kbps
* 128-byte FIFO and on-chip H/W, S/W flow control
* Universal PCI compatible, with 3.3/5V PCI and PCI-X
* Windows 2003/XP/2000/98/ME, Linux, UNIX driver support
* On-board 15 KV ESD protection
Lisälaitteiksi on saatavilla paljon erilaisia kaapeleita ja kytkimiä, katso tarkemmat tiedot tuotteen
datalehdestä.
Pakkaus sisältää
1 x Moxa CP-104JU V2 Universal PCI Serial Board
1 x Moxa ohjelmisto ja dokumentaatio CD-ROM
1 x Asennus-opas
1 x Moxa ohjelmisto ja dokumentaatio CD-ROM
1 x Asennus-opas
Spesifikaatiot
Hardware
* Connectors: 8-pin RJ45
* Communication Controller: MU860 (16C550C compatible)
Interface
* Bus: 32-bit Universal PCI
* Serial: RS-232
* No. of Ports: 4
* Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Performance
* Baudrate: 50 bps to 921.6 Kbps
* Max. No. of Boards: 4 (only one IRQ required)
Configuration
* Parity: None, Even, Odd, Space, Mark
* Data Bits: 5, 6, 7, 8
* Stop Bits: 1, 1.5, 2
* IRQ, I/O Address: BIOS assigned
* Flow Control: RTS/CTS, XON/XOFF
Operating Systems
* Windows Vista (X86 & X64)/NT/2000/XP/2003/95/98/ME
* Linux 26/2.4 (Red Hat, SuSe, etc.)
* FreeBSD, SCO OpenServer, SCO Unixware 7, SCO Unixware 2.1
* Embedded Windows XP, QNX, DOS
Power and Environment
* Power Requirements: 135 mA (+5V)
* Operating Temperature: 0 to 55°C
* Operating Humidity: 5 to 95% RH
* Storage Temperature: -20 to 85°C
* Dimensions (W x D): 64.5 x 120 mm
* Surge Protection: Embedded 15 KV ESD Surge Protection
* Regulatory Approvals: EN55022 Class B, EN55024, EN6100-3-2, EN61000-3-3,FCC Part 15 Class B
Katso tarkemmat tiedot ominaisuuksista oheisesta datalehdestä tai ohjekirjasta.
