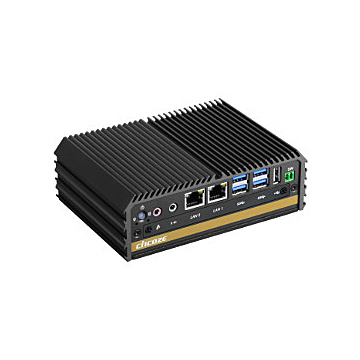

DA-1100-N33
Tuotenro
DA-1100-N33
Toimitusaika 21-30pv
- Onboard Intel® Celeron® N3350 Processor
- Supports Triple Independent Display
- Supports PoE+ Function (with optional CFM module)
- Supports CMI Interface for I/O Expandability
- 1x 2.5” SATA Drive Bay, 1x mSATA Socket
- 2x Full Size Mini-PCIe Socket, 1x SIM Card Socket
- Ultra Compact Size (150 x 105 x 52.3 mm)
- Wide Operating Temperature -40°C to 70°C
- Safety: LVD EN62368-1
Spesifikaatiot
| System | |
| Processor | Intel® Celeron® N3350 Dual Core Processor, up to 2.40 GHz |
| CPU Performance | |
| Security Hardware | |
| Chipset | SoC |
| Storage | 1x 2.5” SATA HDD/SSD Bay 1x mSATA (shared by Mini-PCIe socket) |
| Storage Support | |
| Memory | 1 x DDR3L SO-DIMM slot, up to 8GB |
| Audio | Realtek ALC888-GR |
| Graphics | Integrated Intel® HD Graphics 500 |
| I/O Ports | |
| USB 2.0 | 1 x USB2.0 |
| USB 3.0 | 4x USB 3.0 |
| Serial | 2x RS-232/422/485 Optional CMI Module: -2x Isolated COM Module |
| Video | 1 x DVI-I Optional CMI Module: -1x Display Port -1x DVI-D -1x VGA -1x HDMI |
| Ethernet | 2x GbE LAN , RJ-45 Optional Mec-Lan Module: - 2x RJ45 GbE LAN Module |
| Other Ports | Mic-in/Line-out 1x Remote Power On/Off Connector 1x Remote Reset Connector |
| Expansion | |
| Expansion Interface | 1x CMI (Combined Multiple I/O) High Speed Interface 2x Full-size Mini-PCIe Sockets 1x SIM Socket |
| Operating System | |
| Operating System | Windows® 10 |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 9~48VDC |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +70°C with W.T. SSD, Memory |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 0.9 kg |
| Dimensions | 150 x 105 x 52.3 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | Optional Modules |
| Extra Features | |
| Certification | |
| Certification | CE |
| Jäähdytys | Fanless |
|---|
