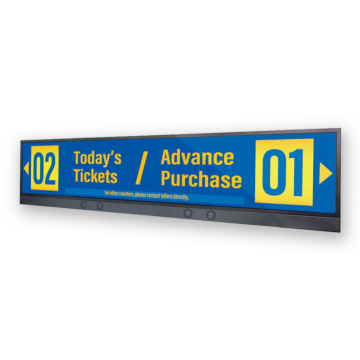

ISDM-4805-SDM
48” TFT LCD, LED Backlight 1000nits, UHD(3840x720)
- Support Intel® Smart Display Module (SDM)
- Plug and play with SDM-L and SDM-S CPU boards
- High Brightness 1000 nits
- Stretched display (aspect ratio of 16: 3)
- Slim Bezel
- Long lasting 24/7 operations Built-in Speakers
- BL MTBF: 100,000 hours
| Display | |
| Screen Size | 48" TFT LCD |
| Screen Resolution | 3840x720 |
| Display Ratio | 16 ::3 |
| Contrast Ratio | 1200 ::1 |
| Brightness | 1000 nits |
| Viewing Angle | 178°(H),178°(V) |
| Number of Colors | 16.7M |
| Touch Screen | |
| Touchscreen | - |
| I/O Ports | |
| Video |
SDM-S, SDM-L interface |
| Other Ports | |
| Operating System | |
| Operating System | |
| Power | |
| DC Input / Source Voltage | 230V AC |
| Multimedia | |
| Operating Temperature | |
| Operating Temperature | 0ºC to 50ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | |
| Dimensions / Weight | |
| Weight (kg) | 12.0 kg |
| Dimensions | 1220.3 x 289.7 x 62 mm |
| Enclosure | |
| Bezel size |
12.5/ 50.2/12/12 mm |
| Material | |
| Mounting | VESA 400x100, (M6 Screw) |
| Protection | |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE / FCC |
| Näytön koko | 49" |
|---|---|
| Näytön signaali (input) | Smart Display Module (SDM) |
