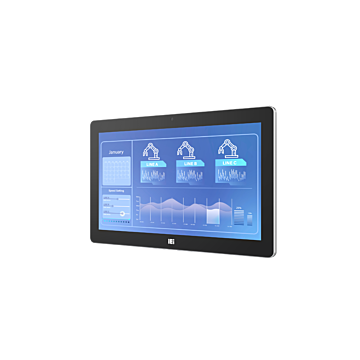

DM2-W156KL-R10 Lite
Tuotenro
DM2-W156KL-R10
Toimitusaika 21-30pv

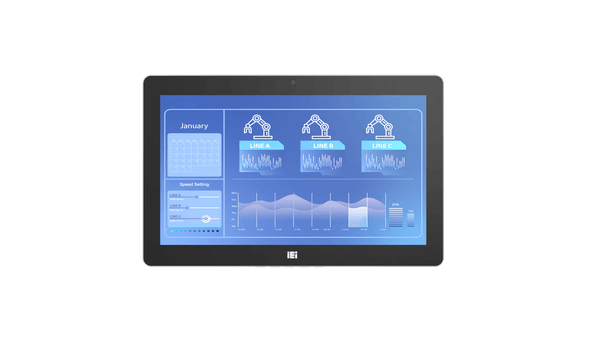

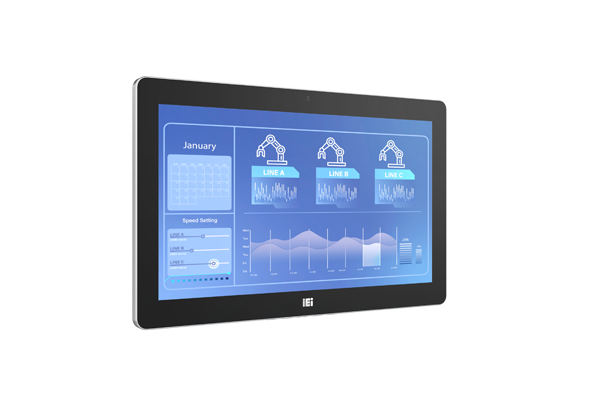

15.6" 450 cd/m² 1920 x 1080 monitor, VGA, HDMI, DisplayPort, USB PC touch screen, 9 ~36V DC input, Speaker

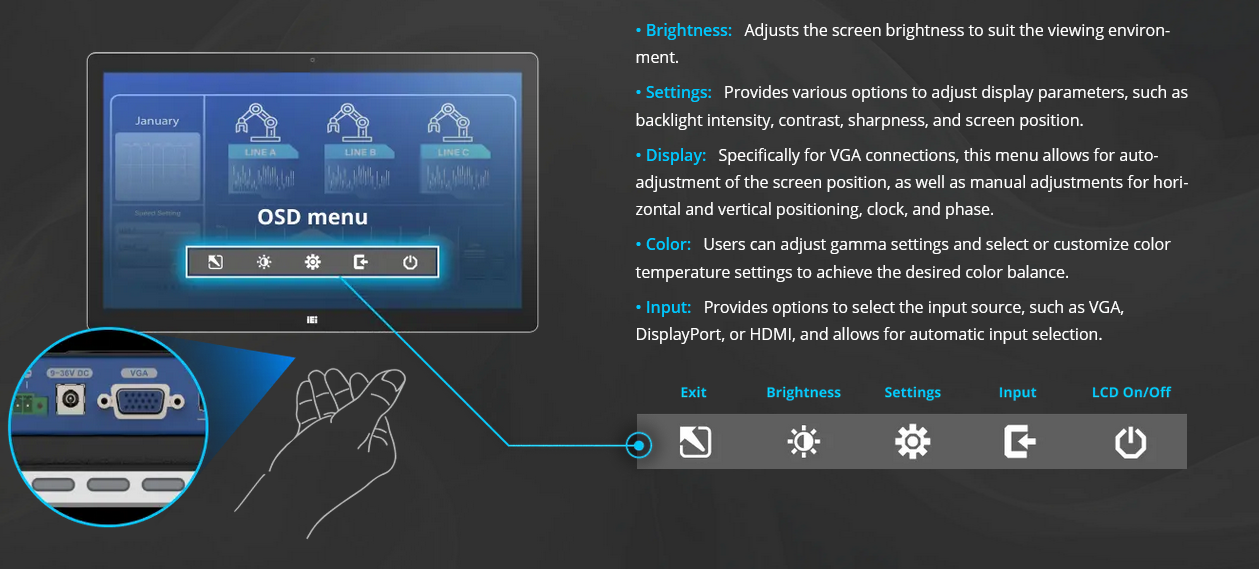

- Front OSD, easy access for setting adjustment
- IP65 compliant front panel with aluminum frame

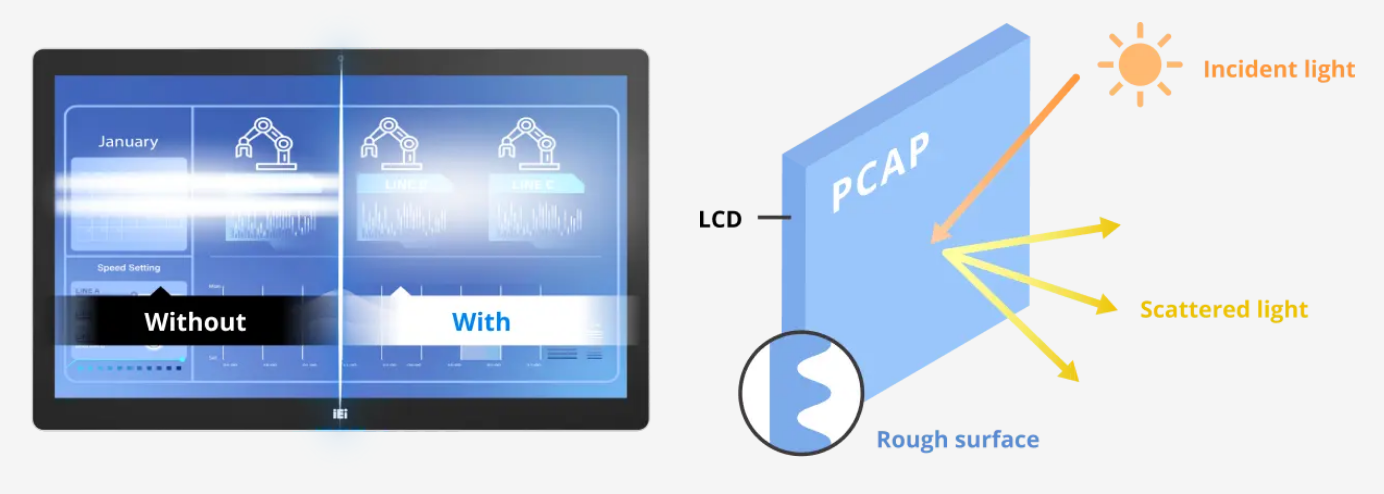

- Anti-glare and anti-UV PCAP
- Speakers positioned at the front, ensuring clear sound delivery even in panel mount
-
Supports gloved operation and waterproof protection
| Display | |
| Screen Size | 15.6" TFT LCD |
| Screen Resolution | 1920x1080 |
| Display Ratio | 16 ::09 |
| Contrast Ratio | 800 ::1 |
| Brightness | 450 nits |
| Viewing Angle | 178°/178° |
| Number of Colors | 16.7M |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) (Anti-UV, Anti-glare Surface) |

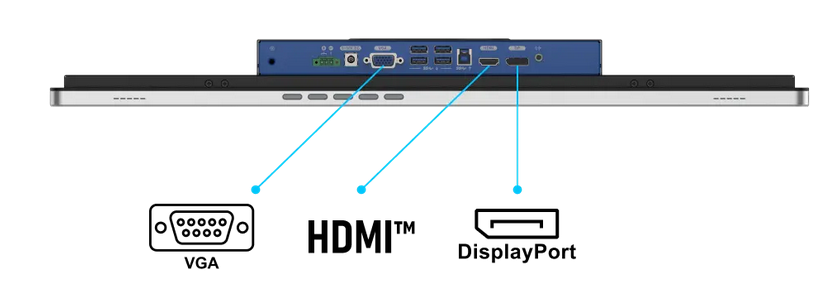

| I/O Ports | |
| Lite configuration |
HDMI |
| DisplayPort 1.2 | |
| VGA | |
| USB-Input (touch) | |
| 9-36V DC input | |
| Standard configuration | HDMI |
| DisplayPort 1.2 | |
| VGA | |
| USB3.2 Gen1 Type-B Input (touch) | |
| 4x USB3.2 Gen1 Type-A | |
| 9-36V DC input | |
| Operating System | |
| Operating System | Windows 10 /Windows11 / LINUX |
| Power | |
| DC Input / Source Voltage | +9V-36VDC 1 x Terminal block (Standard) |
| Multimedia | |
| Integrated Speakers | Dual 2W speakers |
| Operating Temperature | |
| Operating Temperature | -20ºC to 60ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 5.5 kg |

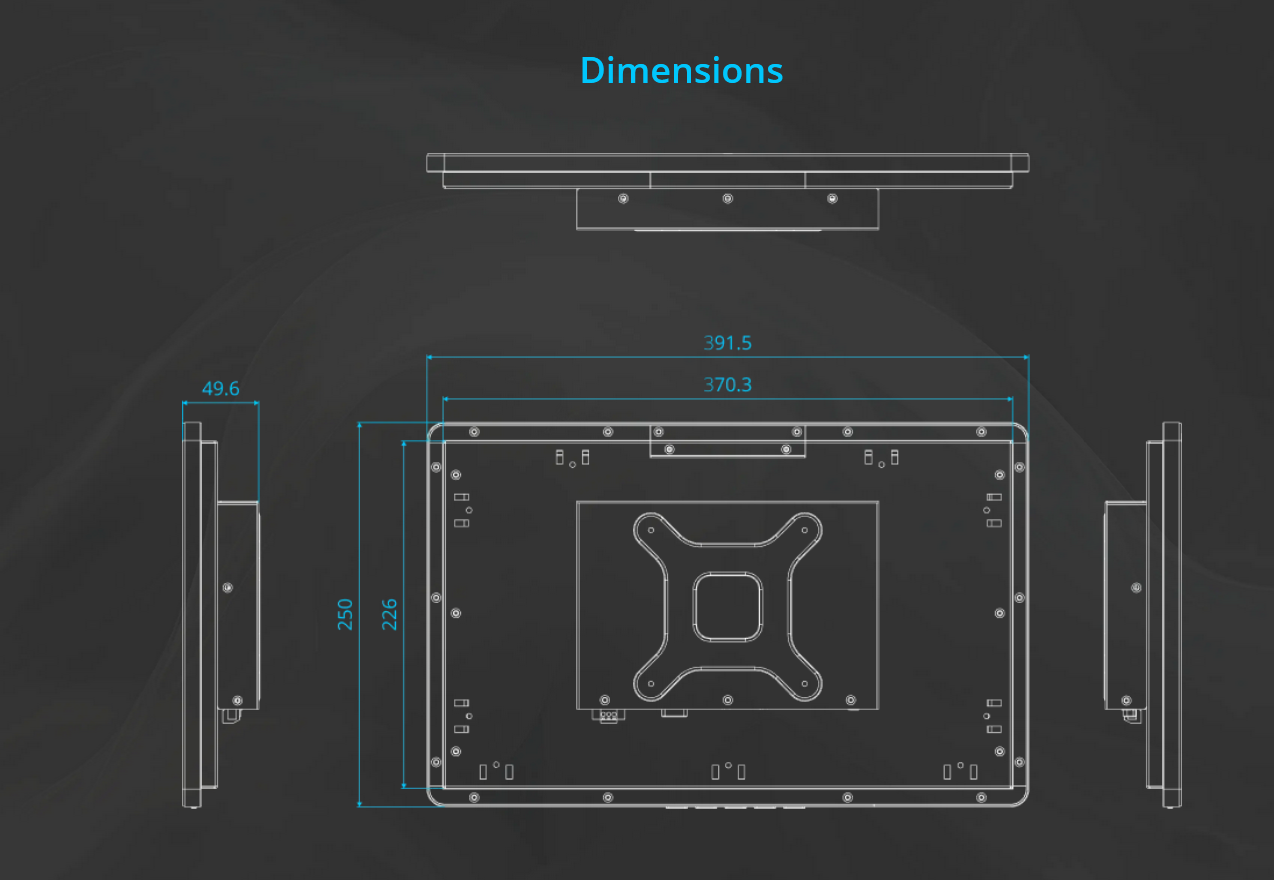

| Dimensions | 392 x 250 x 49,60 mm |
| Cutout Dimension | 373,3 x 269 mm |
| Enclosure | |
| Bezel | IP65 Front |
| Material | Aluminum |
| Mounting | Panel/VESA |
| Certification | |
| Certification | CE |
| Valmistaja / Brand | IEI |
|---|---|
| Näytön koko | 15.6" |
| Kosketusominaisuuden tyyppi | Projected Capasitive (PCAP) |
| Näytön signaali (input) | VGA, HDMI, Display Port |
