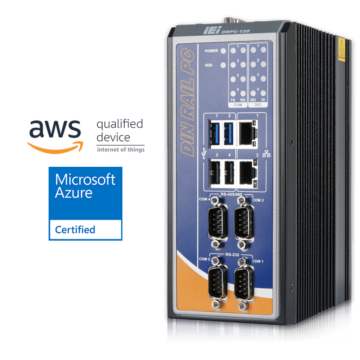

DRPC-120-BT
Tuotenro
DRPC-120-BT
Toimitusaika 21-30pv
- Fanless embedded system with Intel® Bay-Trail E3845 1.91 GHz, TDP 10W
- 2GB DDR3L pre-installed memory
- 1 x 2.5” SATA HDD/SSD drive bay
- 1 x VGA/HDMI, 8 CH DIO
- 9~30 VDC Input
| System | |
| Processor | Intel® Atom™ E3845 1.91 Ghz |
| CPU Performance | |
| Security Hardware | |
| Chipset | SoC |
| Storage | 1 x Half-size mSATA (occupied 1 x PCI Express Mini
Card slot) 1 x Internal 2.5" SATA drive (9.5 mm height) |
| Storage Support | |
| Memory | 2 GB 204-pin DDR3L SO-DIMM pre-installed |
| Audio | |
| Graphics | |
| I/O Ports | |
| USB 2.0 | 2x USB 2.0 |
| USB 3.0 | 2x USB 3.0 |
| Serial | 2x RS-232/422/485 2x RS-232 |
| Video | 1 x HDMI 1 x VGA |
| Ethernet | 2x GbE LAN , RJ-45 |
| Other Ports | 8-bit Digital I/O (4-in/ 4-out) |
| Expansion | |
| Expansion Interface | 1 x Half-size (PCIe) 1 x Full-size (PCIe/USB 2.0/SATA) |
| Operating System | |
| Operating System | Windows® 10 / Win7 |
| Power | |
| DC Input / Source Voltage | 9-28VDC |
| Operating Temperature | |
| Operating Temperature | -20°C ~ +60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | |
| Dimensions / Weight | |
| Weight (kg) | 1.4 kg |
| Dimensions | 74 x 140 172 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | DIN-rail / Wall mounting |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE |
| Jäähdytys | Fanless |
|---|
