DRPC-130-AL-E1

Tuotenro
DRPC-130-AL-E1
Toimitusaika 21-30pv
● Intel® Atom™ x5-E3930 1.3GHz (up to 1.8 GHz)
● DDR3L 1.35V SO-DIMM supported
● Serial, CAN bus and digital I/O interface
Muokkaa DRPC-130-AL-E1
DRPC-130-AL-E1-R10

* Pakolliset kentät

Tuote
DRPC-130-AL-E1
DRPC-130-AL-E1

0,00 EUR

Yhteenveto
    System
    Processor Intel® Atom™ x5-E3930 1.3GHz (up to 1.8 GHz, dual core
    CPU Performance
    Security Hardware
    Chipset SoC
    Storage 1 x Half-size mSATA (occupied 1 x PCI Express Mini Card slot)
    1 x Internal 2.5" SATA drive (9.5 mm height)
    Storage Support
    Memory 1x 204-pin DDR3L SO-DIMM slot (system max. 8 GB)
    Audio
    Graphics

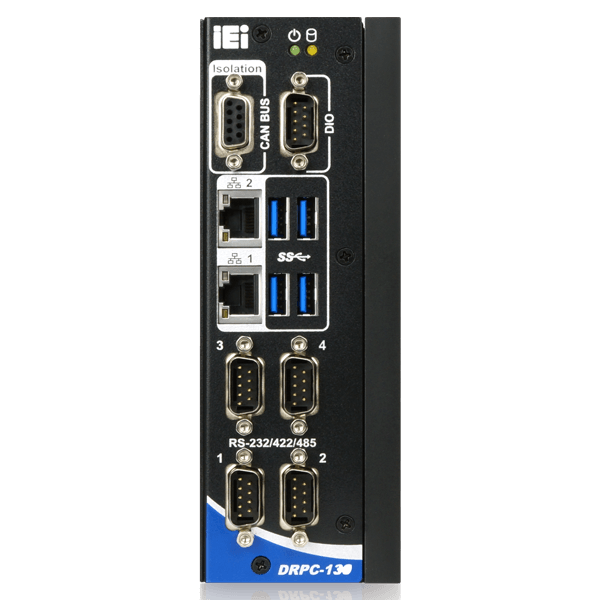

    I/O Ports
    USB 2.0 -
    USB 3.0 4x USB 3.0
    Serial 4x RS-232/422/485
    Video 1 x HDMI 1.4b
    Ethernet 2x GbE LAN , RJ-45
    Other Ports 8-bit Digital I/O (4-in/ 4-out)
    2x CAN-bus , DB-9 w/ 2.5kw Isolation
    Expansion
    Expansion Interface 1 x Half-size (PCIe)
    1 x Full-size (mSATA)
    Operating System
    Operating System Windows® 10 / Win7
    Power

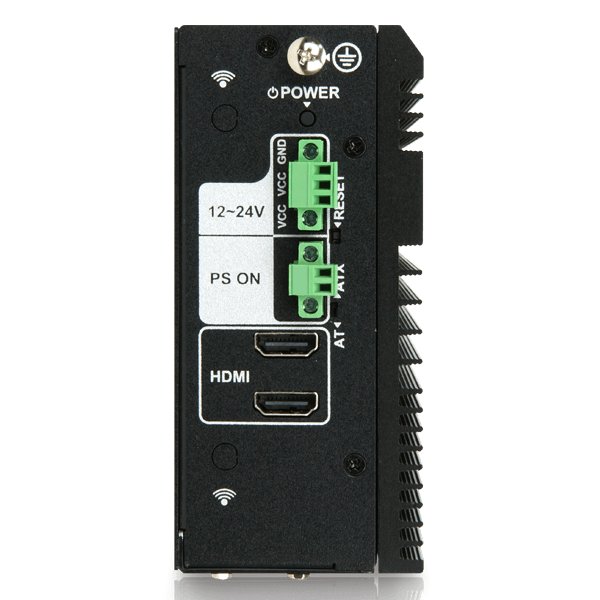

    DC Input / Source Voltage 12-24VDC
    Operating Temperature
    Operating Temperature -20°C ~ +60°C
    Humidity Range 10% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution
    Dimensions / Weight
    Weight (kg) 1.4 kg
    Dimensions 59 x 130 174 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting DIN-rail / Wall mounting
    Peripherals & Devices
    Accessories
    Extra Features
    Certification
    Certification CE
    Lisätietoja
    Jäähdytys Fanless
