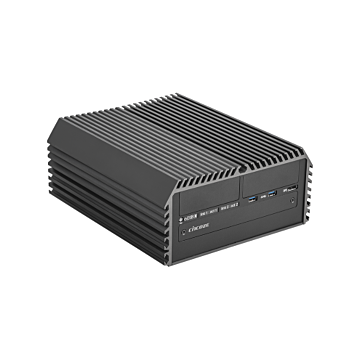

DS-1201
Tuotenro
DS-1201_v1
Toimitusaika 21-30pv
- Supports 9/8th Gen Intel® Core™ 35W/65W LGA 1151 Processors
- 2x DDR4 SO-DIMM Socket, Supports Up to 2666MHz, 64GB
- Triple Independent Displays: 1x DVI-I and 2x DP (4K Resolution)
- 1x M.2 2280 M Key Socket, Auto-detection for PCIex4 NVMe SSD or SATA Gen3 SSD
- 2x Front Accessible SIM Card Slots for Signal Redundancy
- 1x PCI/PCIe Slot for Add-on Cards (Maximum Length: 235 mm)
- 4x CMI Slots for Modular I/O Expansions
- 1x CFM Slot for Power Ignition Sensing Function
- Wide Operating Temperature (-40°C to 70°C )
- EN50121-3-2 Certified/ LVD EN62368-1
Spesifikaatiot
| System | |
| Processor | 8th gen Intel® Core™, 35 ~ 65W |
| CPU Performance | |
| Security Hardware | |
| Chipset | Intel® Q370 |
| Storage | 2x 2.5” SATA HDD/SSD Bay, Support RAID 0/1 (Gen3) 1x M.2 Key M 2280 Socket, Supports PCIe x4 NVMe SSD or SATA SSD (Gen3) 3x mSATA (shared by Mini-PCIe socket) (Gen3), BIOS Selectable |
| Storage Support | |
| Memory | 2 x DDR4 SO-DIMM slot, up to 32GB |
| Graphics | Intel® UHD 630 Graphics supports triple independent display |
| I/O Ports | |
| USB 2.0 | 2 x USB2.0 |
| USB 3.0 | 4x USB 3.0 2x USB 3.1 |
| Serial | 2x RS-232/422/485 Optional CMI Module: -4x Isolated COM Module -4x COM Moduled |
| Video | 1 x DVI-I, 2 x DP |
| Ethernet | 2x GbE LAN , RJ-45 Optional CMI Module: - 4x RJ45 GbE LAN Module (Intel® I210AT) - 4x M12 GbE LAN Module (Intel® I210AT) |
| Other Ports | Mic-in/Line-out 1x PS2 keyboard/mouse 1x Remote Power On/Off Connector 1x Remote Reset Connector |
| Expansion | |
| Expansion Interface | 1x PCI/PCIe Expansion slot (with Optional Riser Card) ( max add-on card size:(H x L):111.15 x 235mm) 1x CFM Interface (Control Function Module) 2x CMI (Combined Multiple I/O) High Speed Interface 2x CMI (Combined Multiple I/O) Low Speed Interface 3x Full-size Mini-PCIe Sockets 2x SIM Socket |
| Operating System | |
| Operating System | Windows® 10 |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 9~48VDC |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +70°C with W.T. SSD, 35W TDP CPU -40°C ~ +45°C with W.T. SSD, 65W TDP CPU |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 5 kg |
| Dimensions | 227 x 261 x 108 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | Optional Modules |
| Extra Features | |
| Certification | |
| Certification | CE, FCC certified, EN50155, EN50121-3-2 |
| Jäähdytys | Fanless |
|---|---|
| CPU Family | Coffee Lake Refresh (9th Gen Core i3/i5/i7) |
| Operating Temp | Wide Temp -40..70C |
