DS-1502
Tuotenro
DS-1502
Tulossa

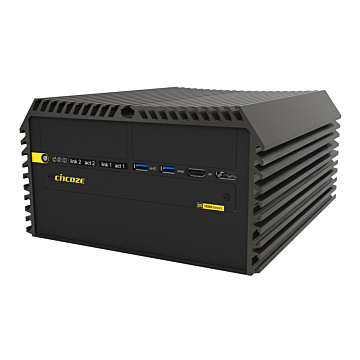

Intel® Arrow Lake-S Core™ Ultra 200S Series Processors, High Performance and PCIe Expandable Rugged Embedded Computer, Supporting up to 2x PCI/PCIe Expansion Cards
- Intel® Arrow Lake-S Core™ Ultra 200S Series (Max 65 W TDP)
- 2x DDR5 SODIMM/CSODIMM Sockets, Up to 6400MHz, 96GB
- 2x PCI/PCIe Expansion Slots, Up to 130W Expansion
- Optional CMI Modules for I/O Expansion
- Optional CFM Modules for Hardware TPM, Ignition Sensing & PoE
- Wide Operating Temperature -40°C to 60°C
| System | |
| Processor | Arrow Lake-S Ultra 200S Series CPU 35W-65W TDP |
| CPU Performance | |
| Security Hardware | Support Discrete TPM2.0 (with Optional CFM Module) |
| Chipset | Intel® W880 Chipset |
| Storage | 1x 2.5" Front Accessible SATA HDD/SSD Bay ( SATA 3.0 ) 1x 2.5" Internal SATA HDD/SSD Bay ( SATA 3.0 ) 1x M.2 Key M Type 2280 Socket (PCIe Gen3 x4 / SATA), Support Storage / Add-on Card Expansion |
| Memory | 2x DDR5 SODIMM/CSODIMM Socket, Support Un-buffered and ECC Type - Ultra 9 / 7: Supports Up to 6400MHz, 96GB - Ultra 5: Supports Up to 5600MHz, 96GB |
| Graphics | Integrated Intel® Xe LPG Graphics |
| I/O Ports | |
| USB 2.0 | 2 x USB2.0 |
| USB 3.2 | 4x USB 3.2 (5Gbps) 2x USB 3.2 (10Gbps) |
| Serial | 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 |
| Video | 1 x HDMI 2 x DisplayPort 1 x VGA |
| Ethernet | 2x 2.5GbE LAN , RJ-45 (Intel I225, Intel I219) Optional CMI Module: - 4x RJ45 GbE LAN Module (Intel® I210AT) - 4x M12 GbE LAN Module (Intel® I210AT) - 2x Intel X550 10GbE LAN |
| Other Ports | Mic-in/Line-out 1x PS2 keyboard/mouse 1x Remote Power On/Off Connector 1x Remote Reset Connector |
| Expansion | |
| Expansion Interface | 2x PCIe /PCI slot 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 4x2 / USB3.2 Gen2x1 / SATA), Support 5G / GNSS / Storage / Add-on Card Expansion 2x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x2 / SATA), Support GNSS / Storage / Add-on Card Expansion 2x High Speed CMI Interface for optional CMI Module Expansion 2x Low Speed CMI Interface for optional CMI Module Expansion 1x CFM Interface (Control Function Module) 1x CFM-TPM Interface for optional CFM-TPM Module Expansion 2x SIM Socket |
| Operating System | |
| Operating System | Windows® 10 / Windows® 11, LINUX |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 9~48VDC |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +60°C with W.T. SSD, 35W TDP CPU -40°C ~ +50°C with W.T. SSD, 65W TDP CPU (with external Fan kit) |
| Humidity Range | 10% ~ 95%, non-condensing |
| Shock | MIL-STD-810G |
| Vibration | MIL-STD-810G |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive – Fanless (optional FAN) |
| Dimensions / Weight | |
| Weight (kg) | 4.9 kg |
| Dimensions | 227 x 261 x 88 mm |
| Enclosure | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | Optional Modules |
| Extra Features | |
| Certification | |
| Certification | CE, UKCA, FCC, ICES-003 Class A EN 50155: 2021 Clause 4.4.6, 13.4.9 - EN 50121-1 : 2017 - EN 50121-3-2: 2016 + A1: 2019 EN 45545-2 |
| Valmistaja / Brand | Cincoze |
|---|
