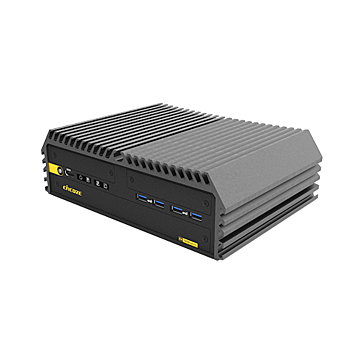

    12th Gen. Intel® Core™ Series High Performance and Compact Rugged Embedded Computer

    • Intel® 12th Gen Alder Lake-S Core™ i9/i7/i5/i3 Processors (max 65 W TDP)
    • 2 x DDR5 SO-DIMM Sockets, Supports ECC/non ECC type Memory, Up to 4800MHZ, 64GB
    • Quad Independent Display (HDMI / DP / DVI-I)
    • 1x M.2 Key E Type 2230 Socket for Intel CNVi / Wireless Module
    • CMI Technology for Optional I/O Module Expansions
    • CFM Technology for Power Ignition Sensing & PoE Function
    • Wide Operating Temperature -40°C to 70°C
    • Safety Standard: CE, e-Mark, EN 62368-1
    System
    Processor 12th Generation Intel® Alder Lake-S Series CPU
    CPU Performance
    Security Hardware
    Chipset Intel R680E Chipset
    Storage 2x 2.5" SATA HDD/SSD Bay (SATA 3.0)
    2x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket )
    Support RAID 0/1/5/10
    Memory 2x DDR5 4800 MHz SO-DIMM Socket
    Supports Un-buffered and ECC Type, Up to 64GB
    Graphics Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5
    Integrated Intel® UHD Graphics 730: Core™ i3
    Integrated Intel® UHD Graphics 710: Pentium®/Celeron®
    I/O Ports
    USB 2.0 -
    USB 3.0 4x USB 3.2 Gen2, Type A, 10Gbps
    4x USB 3.2 Gen1, Type A, 5Gbps
    Serial 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
    Video 1 x DVI-I
    1 x DisplayPort
    1 x HDMI
    Ethernet 2x 10/100/1000 Mbps, RJ45
    GbE1: Intel I219-LM
    GbE2: Intel I210
    Other Ports Mic-in/Line-out
    1x Remote Power On/Off Connector
    1x Remote Reset Connector
    Expansion
    Expansion Interface 1x CFM Interface (Control Function Module)
    2x High Speed CMI Interface for optional CMI Module Expansion
    1x Low Speed CMI Interface for optional CMI Module Expansion
    1x M.2 Key E Type 2230 Socket, Support Intel CNVi Module
    2x Full-size Mini-PCIe Sockets
    1x SIM Socket
    Operating System
    Operating System Windows® 10 / Windows® 11 / LINUX
    Power
    DC Input / Source Voltage Power Input Voltage 9~48VDC
    Operating Temperature
    Operating Temperature -40°C ~ +70°C with W.T. SSD, 35W TDP CPU
    -40°C ~ +55°C with W.T. SSD, 65W TDP CPU (With External Fan Kit)
    Humidity Range 10% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 3.5 kg
    Dimensions 242 x 173 x 75 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting Desk / Wall mounting / DIN-RAIL
    Environment
    Relative Humidity 40°C @ 95% RH (non-Condensing)
    Shock Operating, 50 Grms, Half-sine 11 ms Duration
    (w/ SSD, according to IEC60068-2-27)
    Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes
    (w/ SSD, according to IEC60068-2-64)
    Certification
    Certification CE, UKCA, FCC, ICES-003 Class A
    EN 50155 (EN 50121-3-2 Only)
    E-Mark
    EN 45545-2





    Lisätietoja
    Valmistaja / BrandCincoze
    JäähdytysFanless
    CPU FamilyAlder Lake (12th Gen Core i3/i5i7/i9)
    Operating TempWide Temp -40..70C
