DX-1300
Tuotenro
DX-1300
Tulossa

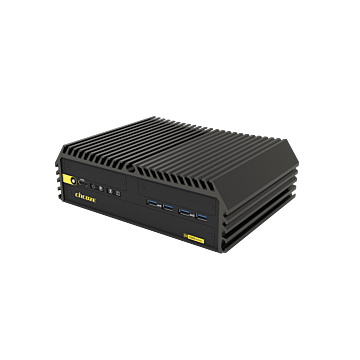

Intel® Arrow Lake-S Core™ Ultra 200S Series Processors, High Performance and Compact Rugged Embedded Computer
- Intel® Arrow Lake-S Core™ Ultra 200S Series (Max 65 W TDP)
- 2x DDR5 SODIMM/CSODIMM Sockets, Up to 6400MHz, 96GB
- Wide Operating Temperature -40°C to 60°C
- 1x M.2 Key E Type 2230 Socket for Intel CNVi / Wireless Module
- Optional CFM Modules for Hardware TPM, Ignition Sensing & PoE
| System | |
| Processor | Arrow Lake-S Ultra 200S Series CPU 35W/65W TDP |
| Security Hardware | |
| Chipset | Intel W880 Chipset |
| Storage | 2x 2.5" SATA HDD/SSD Bay (SATA 3.0) (Support RAID
0/1) M.2 Key B Type 2242 Socket (PCIe Gen 4x2 / SATA) |
| Memory | 2x DDR5 SODIMM/CSODIMM Socket, Support Un-buffered
and ECC Type - Ultra 9 / 7: Supports Up to 6400MHz, 96GB - Ultra 5: Supports Up to 5600MHz, 96GB |
| Graphics | Integrated Intel® Xe LPG Graphics -VGA: 1900x1200 @60HZ -DP: 4096x2304 @60HZ -HDMI : 3840x2160 @60HZ |
| I/O Ports | |
| USB 2.0 | - |
| USB 3.0 | 4x USB 3.2 Gen2, Type A, 10Gbps 4x USB 3.2 Gen1, Type A, 5Gbps |
| Serial | 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 |
| Video | 1 x DVI-I 1 x DisplayPort 1 x HDMI |
| Ethernet | 2x 2.5GbE LAN, RJ45 (2x Intel I226) |
| Other Ports | Mic-in/Line-out 1x Remote Power On/Off Connector 1x Remote Reset Connector |
| Expansion | |
| Expansion Interface | 2x High Speed CMI Interface for optional CMI Module
Expansion 1x Low Speed CMI Interface for optional CMI Module Expansion 1x CFM-IGN Interface for optional CFM-IGN Module Expansion 1x CFM-TPM Interface for optional CFM-TPM Module Expansion 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x2 / USB3.2 Gen1x1 / SATA), Support 5G / GNSS / Storage / Add-on Card Expansion 1x M.2 Key B Type 2242 Socket (PCIe Gen 4x2 / SATA / USB 2.0), Support Storage / Add-on Card Expansion 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x2 / USB2.0), Support Wireless / Bluetooth / Storage / Intel CNVi Module Expansion 1x SIM Socket |
| Operating System | |
| Operating System | Windows® 10 / Windows® 11 / LINUX |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 9~48VDC |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +60°C with W.T. SSD, 35W TDP CPU -40°C ~ +50°C with W.T. SSD, 65W TDP CPU (With External Fan Kit) |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 3.6 kg |
| Dimensions | 242 x 173 x 75 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting / DIN-RAIL |
| Environment | |
| Relative Humidity | 60°C @ 95% RH (non-Condensing) |
| Shock | MIL-STD-810H |
| Vibration | MIL-STD-810H |
| Certification | |
| EMC | CE, UKCA, FCC, ICES-003 Class A |
| EMI | CISPR 32 Conducted & Radiated: Class A EN/BS EN 50121-3-2 Conducted & Radiated: Class A EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A EN/BS EN61000-3-3 Voltage fluctuations & flicker FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A |
| EMS | EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 2 kV EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV EN/IEC 61000-4-6 CS: 10V EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz |
| Railway | EMC: EN 50155: 2021 Clause 4.4.6, 13.4.9 - EN 50121-1 : 2017 - EN 50121-3-2: 2016 + A1: 2019 |
| Industrial Environment | EMC - EN/BS/IEC 61000-6-4: 2019 Class A - EN/BS/IEC 61000-6-2: 2019 (Compliant with additional power protection module) |
| Maritime Application | EMC - IEC 60945 (Compliant with additional power protection module) |
| Fire Protection | EN 45545-2 |
| Safety | UL, cUL, CB, IEC, EN 62368-1 |
| Valmistaja / Brand | Cincoze |
|---|---|
| Jäähdytys | Fanless |
| CPU Family | Alder Lake (12th Gen Core i3/i5i7/i9) |
| Operating Temp | Wide Temp -40..70C |
