eBOX100B
Tuotenro
eBOX100B
Toimitusaika 14-22pv

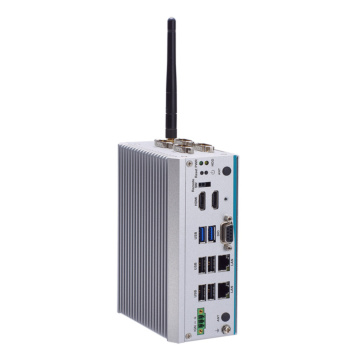

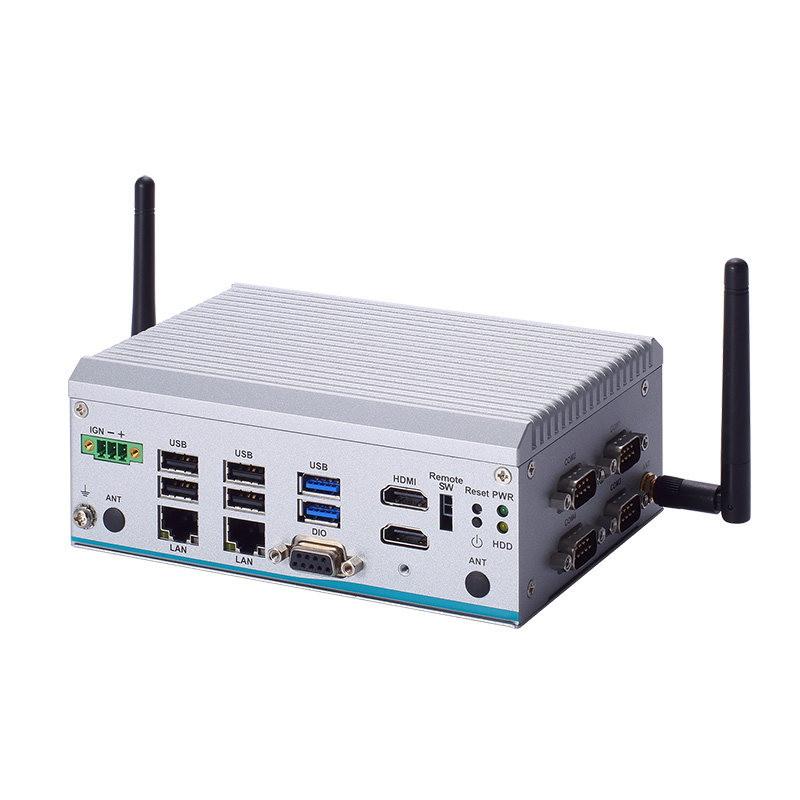

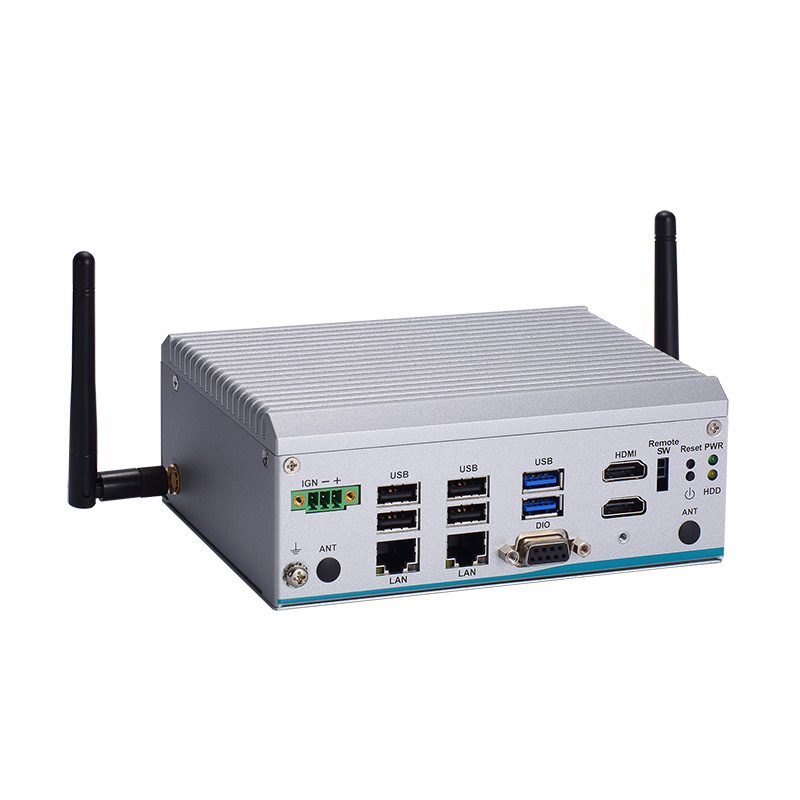

Fanless embedded system with Intel® processor N150 (Twin Lake), 2 LAN, 2 HDMI, 4 COM, 6 USB, DIO, and 9 to 36 VDC
- Intel® Processor N150 Quad-core SoC (Twin Lake)
- 8GB LPDDR5 onboard (16GB option)
- Wide operating temperature -40°C to +70°C
- Intelligent power management: ignition and USB power on/off control
- 2 2.5GbE, 6 USB, 1 DIO, and 4 COM
- 2 HDMI (FHD) for dual display
- M.2 Key E 2230, M.2 Key M 2280, and Mini PCIe
- Front-access I/O design
| System | |
| Processor | Intel® Processor N150 (Twin Lake) (up to 3.6 GHz, 6W) |
| Chipset | SoC |
| Storage | 1 x M.2 2280 slot (NVME) 1 x 2.5” HDD/SDD bay |
| Security | TPM2.0 |
| Memory | 1 x 8GB LPDDR5 onboard |
| I/O Ports | |
| USB 2.0 | 4x USB 2.0 |
| USB 3.0 | 2x USB 3.2 Gen2 |
| Serial | 2 x RS-232/422/485 with autoflow |
| Video | 2x HDMI (lockable) |
| Ethernet | 2 x 2.5G Ethernet LAN, RJ-45 (Intel i226-V) |
| Other Ports | 1 x 8-CH TTL Digital IO |
| Operating System | |
| Operating System | Windows 11 IoT, Linux |
| Power | |
| Source Voltage | 9 to 36 VDC with ignition Inrush current: 1.39 to 6.67 A 230V AC adapter (Optional) |
| Power Management | |
| Expansion Slots | |
| Expansion | 1 x Full-size PCI Express Mini Card slot (USB 2.0 +
PCIe + SIM signal) 1 x M.2 Key E 2230 socket for Wi-Fi (USB 2.0 + PCIe x1 signal) 1 x M.2 Key M 2280 socket for NVMe (PCIe x4 Gen3) 1 x internal SIM slot for PCIe Mini Card slot |
| Mounting | |
| Wall mount kit DIN-rail kit VESA mount kit |
|
| Operating Temperature | |
| Operating Temperature | -40ºC to 70ºC with wide-temp ssd/ram |
| Humidity Range | 10% to 90% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1.1 kg |
| Dimensions | 155 x 110 x60mm |
| Certification | |
| Certification | CE / FCC |
| Valmistaja / Brand | Axiomtek |
|---|
