eBOX560-512-7300U
Tuotenro
eBOX560-512-7300U
Toimitusaika 14-22pv

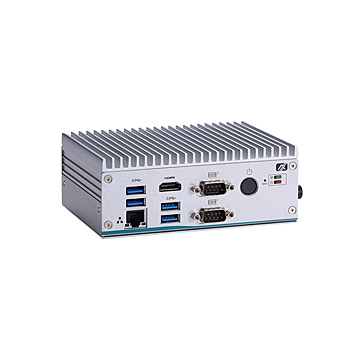

Fanless Embedded System i5-7300U 3.5 GHz, 2 HDMI, 2 GbE LANs, 4 USB 3.0, mPCIE
Ominaisuudet
*Intel® Core™ i5-7300U 3.5 GHz
*Ultra-compact enclosure and wide range power input with protection
*1 PCI Express Mini Card slot and 4 USB 3.0
*One 2.5" SATA HDD drive bay and mSATA interface
*2 HDMI with dual-view support
*Ultra-compact enclosure and wide range power input with protection
*1 PCI Express Mini Card slot and 4 USB 3.0
*One 2.5" SATA HDD drive bay and mSATA interface
*2 HDMI with dual-view support
Spesifikaatiot
| System | |
| Processor | Intel® Core™ i5-7300U 3.5 Ghz |
| CPU Performance | |
| Security Hardware | |
| Chipset | SoC |
| Storage | 1 x 2.5" SATA HDD drive bay 1 x mSATA |
| Storage Support | |
| Memory | 1 x 240-pin SO-DIMM DDR4-2133 up to 16 GB |
| Graphics | 2 x HDMI |
| I/O Ports | |
| USB 2.0 | |
| USB 3.0 | 4x USB3.0 |
| Serial | 2 x RS-232/422/485 |
| Video | 2 x HDMI |
| Ethernet | 2 x 10/100/1000 Mbps Ethernet (Intel® i210AT, i219LM) |
| Other Ports | 1 x AT/ATX quick switch 1 x ATX power switch 1 x Reset button |
| Expansion | |
| Expansion Interface | 1 x Full-size PCI Express Mini Card slot (USB + PCIe signal) |
| Operating System | |
| Operating System | Win10 |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 12VDC 230V AC-DC Adapter |
| Operating Temperature | |
| Operating Temperature | Operating Temperature -20°C to 55°C , with Wide-temp SSD |
| Humidity Range | 10% ~ 90%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1.0 kg |
| Dimensions | 141.6 x 106 x 55 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk/DIN Rail/Wall (options) |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE, FCC certified |
