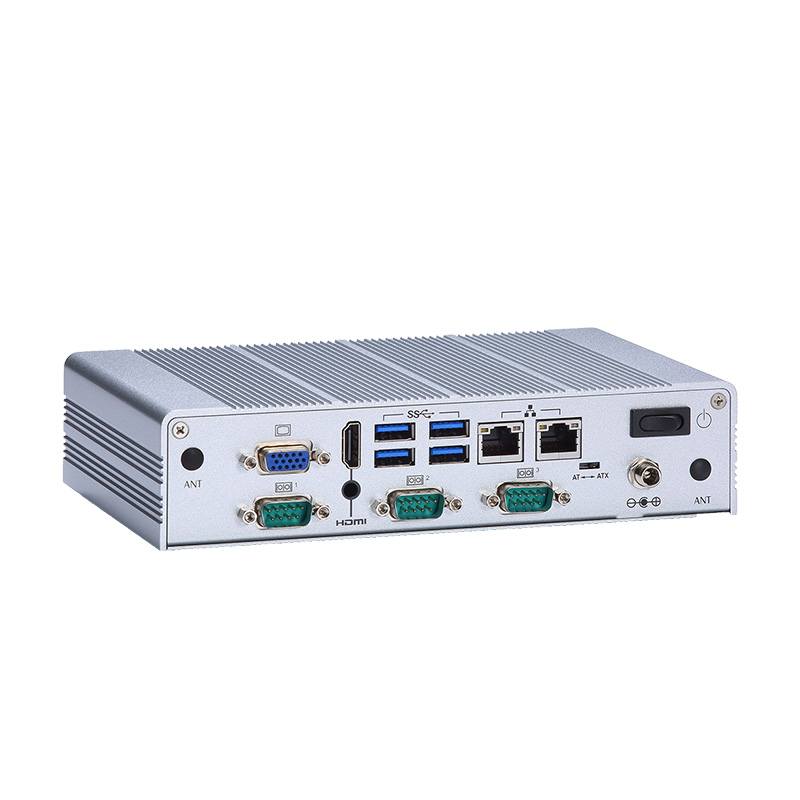

eBOX625-312

Tuotenro
eBOX625-312
Toimitusaika 21-30pv
  • Intel® Celeron® N3350/Pentium® N4200 onboard
  • 204-pin DDR3L-1866 SO-DIMM for up to 8GB of memory
  • Supports 2 GbE LAN, 3 COM and 6 USB
  • One 2.5” SATA drive bay and mSATA supported
  • Trusted Platform Module (TPM) 1.2
  • 2 PCI Express Mini Card slots and 1 SIM slot
  • -20°C to +65°C operating temperature range
Muokkaa eBOX625-312

* Pakolliset kentät

Tuote
eBOX625-312
eBOX625-312

0,00 EUR

Yhteenveto
    System
    Processor Intel® Celeron® Processor N3350 2.4 Ghz
    Intel® Pentium® Processor N4200, 2.5 Ghz
    CPU Performance
    Security Hardware
    Chipset SoC
    Storage 1 x 2.5" SATA HDD drive bay (max. up 9.5 mm height)
    1 x mSATA (enabled in BIOS setting)
    Storage Support
    Memory 1 x 204-pin SO-DIMM DDR3L-1866, up to 8GB
    Audio
    Graphics 1 x HDMI
    I/O Ports
    USB 2.0 2x USB 2.0
    USB 3.0 4x USB 3.0
    Serial 2x RS-232/422/485
    1x RS-232
    Video 1 x HDMI
    Ethernet 2x GbE LAN , RJ-45
    Other Ports
    Expansion
    Expansion Interface 2 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
    1 x SIM slot
    Operating System
    Operating System Windows® 10, LINUX
    Power
    DC Input / Source Voltage 12VDC
    230V AC-DC adaptor
    Operating Temperature
    Operating Temperature -20°C ~ +60°C
    Humidity Range 10% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution
    Dimensions / Weight
    Weight (kg) 1.1 kg
    Dimensions 200 x 120 x 46 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting DIN-rail / Wall mounting/ VESA mount kit
    Peripherals & Devices
    Accessories
    Extra Features
    Certification
    Certification CE
    Lisätietoja
    Jäähdytys Fanless
