EBOX626A
Tuotenro
eBOX626A-EL-C1
Toimitusaika 21-30pv

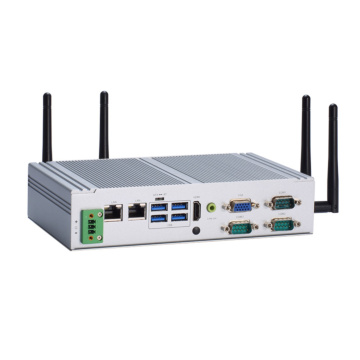

Fanless Embedded System with Intel® Celeron J6412 2.0 GHz, HDMI, VGA, 6 USB, 2 LAN, 3 COM, and 9 to 36 VDC
- Intel® Celeron® Processor J6412 quad-core onboard
- -10 °C to +60 °C operating temperature
- 1 HDMI and 1 VGA for dual-view display
- Trusted Platform Module (TPM) 2.0 onboard
- M.2 Key E for WiFi/WiFi 6 connection
- 9-36 VDC Wide range power input
| System | |
| Processor | Intel® Celeron® processor J6412, up to 10W |
| CPU Performance | |
| Security Hardware | TPM2.0 |
| Chipset | SoC |
| Storage | 1 x 2.5" SATA HDD drive bay (up to 9.5 mm height) 1 x mSATA (enabled in BIOS setting) |
| Memory | 1 x 260-pin DDR4-3200 SO-DIMM, up to 32GB |
| Audio | |
| Graphics | 1 x HDMI 1.4b (lockable) 1 x VGA |
| I/O Ports | |
| USB 2.0 | 2 x USB2.0 |
| USB 3.0 | 4x USB 3.2 Gen1 |
| Serial | 1 x RS-232/422/485 2 x RS-232 |
| Video | 2 x HDMI 1.4b 1 x DisplayPort++ 1.4a |
| Ethernet | 1 x 10/100/1000/2500 Mbps Ethernet (Intel® i226-LM) 1 x 10/100/1000 Mbps Ethernet (Intel® i210-AT) |
| Other Ports | 1 x Audio (Line-out) TPM 2.0 1 x ATX power switch 1 x ATX/AT quick switch 1 x Remote power switch 4 x Antenna opening |
| Expansion | |
| Expansion Interface | 1 x Full size internal PCI Express Mini Card slot
(mSATA/SIM) (USB + PCIe + SATA) 1 x M.2 2230 Key E (PCIe + USB) |
| Operating System | |
| Operating System | Win 10 IoT, Win 11 IoT, Linux |
| Power | |
| DC Input / Source Voltage | 9 to 36V DC |
| Operating Temperature | |
| Operating Temperature | -10°C to +60°C with 0.5 m/s air flow (with W.T. DRAM & SSD,CPU TDP 10W) |
| Humidity Range | 10% ~ 95%, non-condensing |
| Vibration & Shock | |
| Vibration | IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis) |
| Shock | IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration) |
| Dimensions / Weight | |
| Weight (kg) | 1.2 kg |
| Dimensions | 200 x 120 x 46 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting / DIN-RAIL |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE |
| Jäähdytys | Fanless |
|---|---|
| CPU Family | Alder Lake (12th Gen Atom X/Intel N) |
| Operating Temp | Wide Temp -10..50C |
