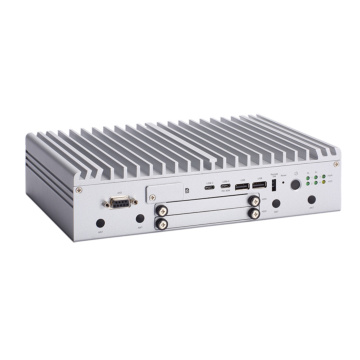

eBOX630B
Tuotenro
eBOX630B-x
Toimitusaika 21-30pv
Fanless Embedded AI System with Intel® Core™ Ultra Processor, HDMI/DisplayPort, 4 LAN, 4 COM, 6 USB, 2 USB Type-C, and 9 to 60 VDC
- Intel® Core™ Ultra processor (Meteor Lake-U/H)
- Multiple compute engines: CPU, GPU (Intel® Arc GPU by H SKU) and NPU (Intel® AI Boost)
- Dual channel DDR5 5600 SO-DIMM, up to 64GB
- 6 USB and 2 USB Type-C with DisplayPort support
- Supports multiple display interfaces with 1 HDMI 1.4b and 3 x DisplayPort (2 ports via USB Type-C)
- Three 2.5GbE LAN with TSN and 1 GbE
- Two 2.5" front-access swappable HDD/SSD and 1 M.2 Key M 2280
- Wide operating temperature range from -40°C to +70°C
- Wide power input range from 9 to 60 VDC
- Supports the OpenVINO™ toolkit for AI computing
| System | |
| Processor | Intel® Core™ Ultra |
| CPU Performance | Intel® Core™ Ultra 7 processor 155H (16 cores, 28W
TDP) Intel® Core™ Ultra 5 processor 125H (14 cores, 28W TDP) Intel® Core™ Ultra 5 processor 125U (12 cores, 15W TDP) |
| Security Hardware | TPM2.0 |
| Chipset | SoC |
| Storage | 2 x 2.5” swappable SSD/HDD drive bay RAID 0,1 supported 1 x M.2 Key M 2280 (PCIe x 4 only) |
| Memory | 2 x 262-pin DDR5-5600 SO-DIMM, non ECC, up to 64GB |
| Audio | |
| Graphics | 1 x HDMI 1.4b (lockable) 1 x DisplayPort 1.4a |
| I/O Ports | |
| USB 2.0 | 2 x USB2.0 |
| USB 3.0 | 4x USB 3.2 Gen2 |
| USB C-type | 1 x USB Type-C (DisplayPort/USB 10Gbps support) 1 x USB Type-C (DisplayPort/USB 10Gbs with 30W power delivery support) |
| Serial | 2 x RS-232/422/485 with
auto flow (COM1/2) 2 x RS-232 with auto flow (COM3/4) |
| Video | 2 x HDMI 1.4b 1 x DisplayPort++ 1.4a |
| Ethernet | 3 x 10/100/1000/2500 Mbps Ethernet (Intel® I226-IT) 1 x 10/100/1000 Mbps Ethernet (Intel® I210-IT) |
| Other Ports | 1 x 8-CH TTL DIO via DB9 female (4-in/4-out) 1 x ATX power switch 1 x Remote power switch 1 x Reset switch connector 1 x Front-access SIM slot 4 x Antenna opening |
| Expansion | |
| Expansion Interface | 1 x Full-size PCI Express Mini Card (USB + PCIe
signal) 1 x M.2 Key E 2230 slot for Wi-Fi (USB 2.0 + PCIe signal) 1 x M.2 Key M 2280 slot for NVMe storage (PCIe x4 signal only) |
| Operating System | |
| Operating System | Win 10 IoT, Win 11 IoT, Linux |
| Power | |
| DC Input / Source Voltage | 9 to 60V DC |
| Operating Temperature | |
| Operating Temperature | -40°C to +70°C with 0.7 m/s air flow (CPU: 15W TDP)
(with W.T. DRAM and SSD) -40°C to +60°C with 0.7 m/s air flow (CPU: 28W TDP) (with W.T. DRAM and SSD) |
| Humidity Range | 10% ~ 95%, non-condensing |
| Vibration & Shock | |
| Vibration | IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis) |
| Shock | IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration) |
| Dimensions / Weight | |
| Weight (kg) | 2.4 kg |
| Dimensions | 250 x 170 x 60 mm |
| Enclosure | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting / DIN-RAIL |
| Peripherals & Devices | |
| Accessories | Optional Modules |
| Extra Features | |
| Certification | |
| Certification | CE, FCC Class A, UKCA |
| Valmistaja / Brand | Axiomtek |
|---|---|
| Jäähdytys | Fanless |
| CPU Family | Meteor Lake (Core Ultra) |
| Operating Temp | Wide Temp -40..60C |
