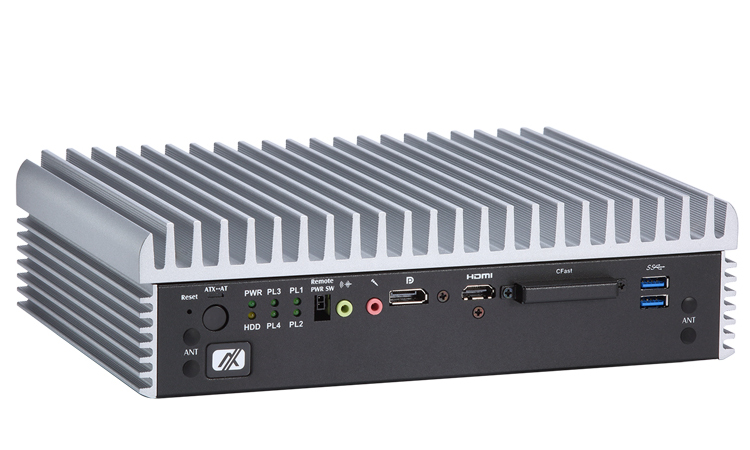

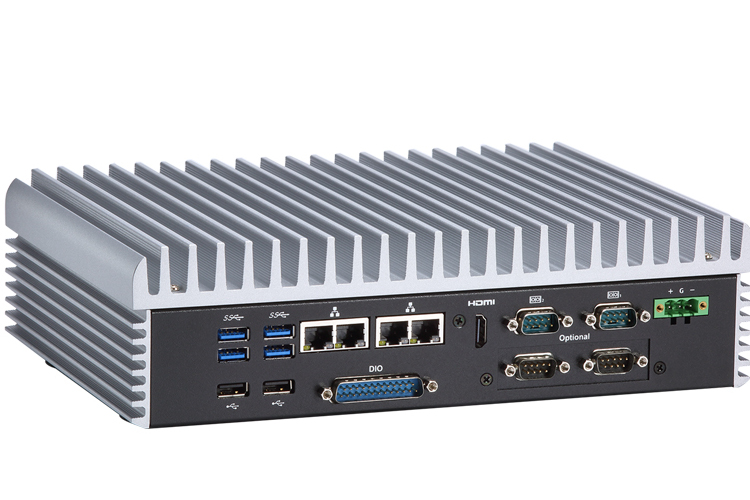

eBOX670-891-FL

Toimitusaika 4-22pv
Tuotenro
eBOX670-891-FL-DC
Fanless system, 6th/7th gen Intel Core i7/i5/i3, Q170 chipset, 2 HDMI, 1 DisplayPort, 4 GbE LANs, 6 USB 3.0, CFast™, dual PCIe Mini Card, 9- 36 VDC
Ominaisuudet
* LGA1151 socket 6th/7th Intel® Core™ i7/i5/i3 & Celeron® processors (Skylake/Kaby Lake)
* 260-pin DDR4-2133 SO-DIMM, up to 32GB
* 2 internal PCI Express Mini Cards and 1 SIM slot for WLAN/WWAN/mSATA
* 1 DisplayPort and 2 HDMI (1 HDMI 2.0) with triple-view supported
* Supports Jumbo Frame (9.5k), WoL, PXE Remote Boot, Teaming
* 9-36 VDC wide range power input
* Flexible I/O module design
Spesifikaatiot
System
Processor LGA1151 socket 6th/7th Intel® Core™ i7/i5/i3 & Celeron® processors (Skylake/Kaby Lake)
CPU Performance * 2.4Ghz i7-6700TE
* 2.3Ghz i5-6500TE
Security Hardware
Chipset Intel® Q170
Storage 1 x 2.5" SATA HDD
1 x mSATA
Storage Support
Memory 2 x 260-pin SO-DIMM DDR4-2133, up to 32 GB
Graphics 2 x HDMI , 1 x DisplayPort
I/O Ports
USB 2.0 2 x USB 2.0
USB 3.0 6 x USB 3.0
Serial 2 x RS-232/422/485
Video 2 x HDMI
1 x VGA
Ethernet 4 x 10/100/1000 Mbps (Intel® i210IT, i219LM)
Other Ports 32 DI/DO
Mic-in/Line-out
Expansion
Expansion Interface 2 x Full-size PCI Express Mini Card slots (USB+PCI Express signal)
1 x SIM slot
Operating System
Operating System Win10, Linux
Power
DC Input / Source Voltage +9- 36VDC
Optional AC 230 Adapter
Operating Temperature
Operating Temperature Operating Temperature -40°C to 55°C , with Wide-temp SSD
Humidity Range 10% ~ 90%, non-condensing
Cooling System / Thermal Solution
Thermal Solution Passive - Fanless
Dimensions / Weight
Weight (kg) 3.8 kg
Dimensions 280 x 190 x 70 mm
Enclosure
Bezel
Material Aluminum / Steel
Mounting Desk/Wall mounting
Peripherals & Devices
Accessories
Extra Features
Certification
Certification CE
