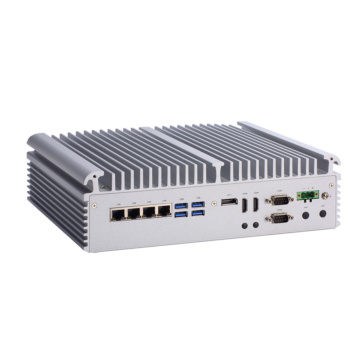

eBOX671A-CML-GbE
Tuotenro
eBOX671A-CML-GbE
Toimitusaika 21-30pv
Fanless Embedded System with LGA1200 Socket 10th Gen Intel® Core™ i9/i7/i5/i3 or Celeron® Processor, Intel® W480E, HDMI, DisplayPort, 6 USB, 4 LAN, and 9 to 48 VDC
- LGA1200 10th gen Intel® Core™ i9/i7/i5/i3 or Celeron® with Intel® W480E chipset (Comet Lake-S)
- Dual 2.5" SATA HDD drive bays with RAID 0 &1
- 2 HDMI and DisplayPort for triple view
- TPM 2.0 onboard
- AXView intelligent remote monitoring software for IIoT
| System | |
| Processor | LGA1200 socket 10th gen Intel® Core™ i9/i7/i5/i3 or Celeron® processor (35W/65W) |
| CPU Performance | |
| Security Hardware | |
| Chipset | Intel® W480E |
| Storage | 2 x 2.5” SATA HDD/SSD (up to 9.5 mm height) 2 x mSATA (enabled in jumper setting) |
| Storage Support | |
| Memory | 2 x 260 pin DDR4 SO-DIMM, up to 64GB |
| Graphics | Integrated Intel® HD Graphics |
| I/O Ports | |
| USB 2.0 | - |
| USB 3.0 | 5x USB 3.2 Gen2 1x USB 3.2 Gen1 |
| Serial | 2 x RS-232 2 x RS-232/422/485 |
| Video | 2 x HDMI 1.4b (lockable) 1 x DisplayPort 1.2 ++ |
| Ethernet | 4 x 10/100/1000 Mbps Ethernet (3 x i210IT,1 x i219LM) |
| Other Ports | TPM 2.0 1 x Flexible I/O window 5 x Antenna opening 1 x Power button 1 x AT/ATX quick switch 1 x Remote switch 1 x Reset button |
| Expansion | |
| Expansion Interface | 2 x Full-size PCI Express Mini Card slot (USB + PCIe
+ SATA signal) 2 x SIM slot 1 x M.2 Key B 3050 (for 5G) |
| Operating System | |
| Operating System | Windows® 10 |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 9~48VDC |
| Operating Temperature | |
| Operating Temperature | -40°C to 70°C (40°F to 158°F W.T. DRAM & SSD, CPU TDP 35W) -40°C to 60°C (40°F to 140°F W.T. DRAM & SSD, CPU TDP 65W) |
| Humidity Range | 10% ~ 90%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 4.9 kg |
| Dimensions | 280 x 210 x 80.5 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting kit / DIN-rail kit |
| Peripherals & Devices | |
| Accessories | Optional Modules |
| Extra Features | |
| Certification | |
| Certification | CE, FCC Class A |
| Jäähdytys | Fanless |
|---|---|
| CPU Family | Comet Lake (10th Gen Core i3/i5i7/i9) |
| Operating Temp | Wide Temp -40..60C |
