eBOX800-900-FL
Tuotenro
eBOX800-900-FL
Toimitusaika 21-30pv

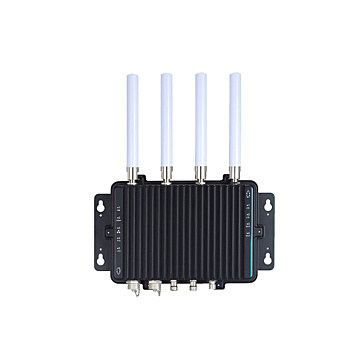

Rugged IP67-rated fanless edge system with NVIDIA® JETSON TX2,1 HDMI, 1 GbE LAN, 1 Gigabit PoE, 1 USB 2.0 and 100 to 240 VAC power input
Ominaisuudet
* IP67-rating for outdoor use
* NVIDIA® JETSON™ TX2 with Pascal™, 256 CUDA cores GPU
* High AI computing performance for GPU-accelerated processing
* -30°C to +60°C operating temperature range
* 100 to 240 VAC wide range power input with 10kV surge protection
* 4 N-jack antenna openings with water proof design
* Features M12 lockable I/Os
* 1 IEEE 802.3at GbE LAN port (30W)
* Rich I/O options for customized designs and mission-critical projects
* NVIDIA® JETSON™ TX2 with Pascal™, 256 CUDA cores GPU
* High AI computing performance for GPU-accelerated processing
* -30°C to +60°C operating temperature range
* 100 to 240 VAC wide range power input with 10kV surge protection
* 4 N-jack antenna openings with water proof design
* Features M12 lockable I/Os
* 1 IEEE 802.3at GbE LAN port (30W)
* Rich I/O options for customized designs and mission-critical projects
Pakkaus sisältää
eBOX800-900-FL
* NVIDIA® JETSON™ TX2
* 8GB RAM
* NVIDIA® JETSON™ TX2
* 8GB RAM
Spesifikaatiot
| System | |
| Processor | CPU Board: NVIDIA® JETSON™ TX2 CPU: HMP dual denver 2/2 MB L2 + quad ARM® A57/2 MB L2 GPU: NVIDIA® Pascal™, 256 CUDA cores |
| CPU Performance | |
| Chipset | SoC integrated |
| Storage | 1 x M.2 2280 KEY M with PCIe 2.0 x4 for NVMe SSD (optional) Onboard 32GB eMMC (via JETSON™ TX2) |
| Storage Support | |
| Memory | 8GB 128-bit LPDDR4 onboard |
| Memory (RAM) | |
| I/O Ports | |
| USB 2.0 | 1 x C3 USB 2.0 |
| USB 3.0 | |
| Serial | |
| Video | 1 x C3 HDMI with FHD supported |
| Ethernet | 1 x 10/100/1000 Mbps Ethernet (M12 X-Code) 1 x Gigabit PoE (IEEE 802.3at, 30W) (M12 X-Code) |
| Other Ports | 4 x N-jack antenna opening with water proof design |
| Operating System | |
| Operating System | Linux Ubuntu |
| Power | |
| DC Input / Source Voltage | 100 to 240 VAC with 10kV SPD |
| Power Management | |
| Expansion Slots | |
| Expansion | |
| Multimedia | |
| Integrated Speakers | |
| Operating Temperature | |
| Operating Temperature | -30°C to +60°C |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 4.3 kg |
| Dimensions | 210 x 366.83 x 83 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum |
| Mounting | Wall-mount, VESA |
| Note * | |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE / FCC |
