EDS-2005-EL
Tuotenro
EDS-2005-EL
Toimitusaika 21-30pv

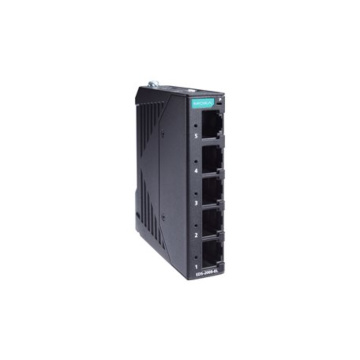

5-port entry-level unmanaged Ethernet switches with metal housing
- 10/100BaseT(X) (RJ45 connector)
- Compact size for easy installation
- QoS supported to process critical data in heavy traffic
- IP40-rated metal housing
| Ethernet Interface | |
| 10/100BaseT(X) Ports (RJ45 connector) | 5 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.1p for Class of Service IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control |
| Switch Properties | |
| Processing Type | Store and Forward |
| MAC Table Size | 2K |
| Packet Buffer Size | 768 kbits |
| Power Parameters | |
| Connection | 1 removable 2-contact terminal block |
| Input Current | 0.045A @ 24VDC |
| Input Voltage | 12/24/48 VDC |
| Physical | |
| Dimensions | 18x 81 x65mm |
| Installation | Din-rail mounting Wall mounting |
| Housing | Metal |
| Managed Eth | Un-Managed |
|---|---|
| Fiber Option | None |
| PoE Option | None |
| Valmistaja / Brand | Moxa |
