EDS-205A

Tuotenro
EDS-205A
Toimitusaika 14-22pv

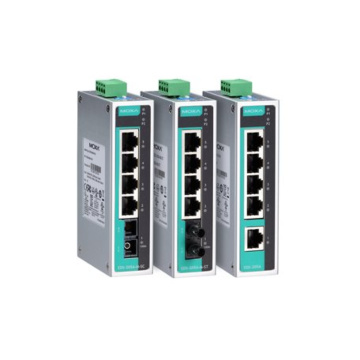

5-port compact unmanaged Ethernet switches

  • 10/100BaseT(X) (RJ45 connector), 100BaseFX (multi/single-mode, SC or ST connector)
  • Redundant dual 12/24/48 VDC power inputs
  • IP30 aluminum housing
  • Rugged hardware design well suited for hazardous locations (Class 1 Div. 2/ATEX Zone 2), transportation (NEMA TS2/EN 50121-4), and maritime environments (DNV/GL/LR/ABS/NK)
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector) EDS-205A/205A-T: 5
EDS-205A-M-SC/M-ST/S-SC Series: 4

All models support:
Auto negotiation speed
Full/half duplex mode
Auto MDI/MDI-X connection
100BaseFX Ports (multi-mode SC connector) EDS-205A-M-SC Series: 1
100BaseFX Ports (multi-mode ST connector) EDS-205A-M-ST Series: 1
100BaseFX Ports (single-mode SC connector) EDS-205A-S-SC Series: 1
Standards IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
Switch Properties
Processing Type Store and Forward
MAC Table Size 1K
Packet Buffer Size 384 kbits
Max. No. Of VLANs
Power Parameters
Connection 1 removable 4-contact terminal block
Input Current EDS-205A/205A-T: 0.09 A @ 24 VDC
EDS-205A-M-SC/M-ST/S-SC Series: 0.1 A @ 24 VDC
Input Voltage 12/24/48 VDC
Physical
Dimensions 30 x 115 x 70 mm
Installation Din-rail mounting
Wall mounting
Housing Metal
Lisätietoja
Managed EthUn-Managed
Fiber OptionNone
PoE OptionNone
Valmistaja / BrandMoxa
