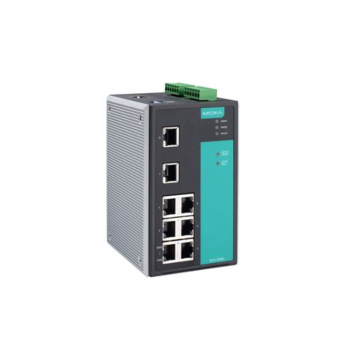

EDS-508A
Tuotenro
EDS-508A-x
Toimitusaika 21-30pv
8-port managed Ethernet switches
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
- TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
- Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
- Supports MXstudio for easy, visualized industrial network management
| Ethernet Interface | |
| 10/100/1000BaseT(X) Ports (RJ45 connector) | EDS-508A Series: 8 EDS-508A-MM/SS Series: 6 All models support: Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection |
| 100BaseFX Ports (multi-mode SC connector) | EDS-508A-MM-SC Series: 2 |
| 100BaseFX Ports (multi-mode ST connector) | EDS-508A-MM-ST Series: 2 |
| 100BaseFX Ports (single-mode SC connector) | EDS-508A-SS-SC Series: 2 |
| 100BaseFX Ports, Single-Mode SC Connector, 80 km | EDS-508A-SS-SC-80 Series: 2 |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.1X for authentication IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.3x for flow control IEEE 802.3ad for Port Trunk with LACP |
| Ethernet Software Features | |
| Filter | 802.1Q VLAN, Port-based VLAN, IGMP v1/v2, GVRP, GMRP |
| Industrial Protocols | EtherNet/IP, Modbus TCP |
| Redundancy Protocols | STP, MSTP, RSTP, LACP, Link Aggregation, Turbo Chain, Turbo Ring v1/v2 |
| Switch Properties | |
| Processing Type | |
| MAC Table Size | 8 K |
| Packet Buffer Size | 1 Mbits |
| Max. No. Of VLANs | 64 |
| Power Parameters | |
| Connection | 2 removable 6-contact terminal block(s) |
| Input Current | EDS-508A Series: 0.22 A @ 24 VDC EDS-508A-MM/SS Series: 0.30 A @ 24 VDC |
| Input Voltage | 12/24/48 VDC, Redundant dual inputs |
| Power Budget | - |
| Physical | |
| Dimensions | 80.2 x 135 x 105 mm |
| Installation | Din-rail mounting Wall mounting (optional) |
| Housing | Metal |
| Managed Eth | Managed |
|---|---|
| Fiber Option | Multi-mode |
| PoE Option | None |
| Valmistaja / Brand | Moxa |
