EDS-G308
Tuotenro
EDS-G308
Toimitusaika 21-30pv

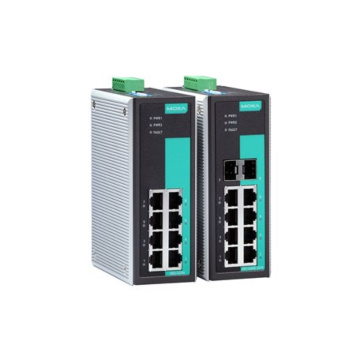

8G-port full Gigabit unmanaged Ethernet switches
- Fiber-optic options for extending distance and improving electrical noise immunity
- Redundant dual 12/24/48 VDC power inputs
- Supports 9.6 KB jumbo frames
- Relay output warning for power failure and port break alarm
- Broadcast storm protection
| Ethernet Interface | |
| 10/100/1000BaseT(X) Ports (RJ45 connector) | 8 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.3z for 1000BaseX IEEE 802.3az for Energy-Efficient Ethernet |
| Switch Properties | |
| Processing Type | Store and Forward |
| MAC Table Size | 8K |
| Packet Buffer Size | 4 Mbits |
| Power Parameters | |
| Connection | 1 removable 6-contact terminal block |
| Input Current | 0.045A @ 24VDC, Redundant dual inputs |
| Input Voltage | 12/24/48 VDC |
| Physical | |
| Dimensions | 52.85 x 135 x 105 mm |
| Installation | Din-rail mounting Wall mounting |
| Housing | Metal |
| Managed Eth | Un-Managed |
|---|---|
| Fiber Option | SFP |
| PoE Option | None |
| Valmistaja / Brand | Moxa |
