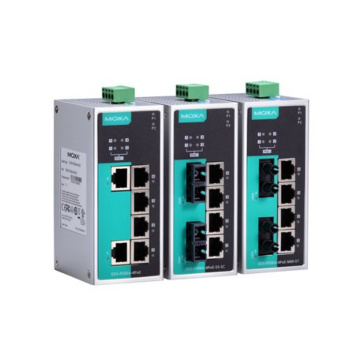

6-port unmanaged Ethernet switches with 4 IEEE 802.3af/at PoE+ ports

  • IEEE 802.3af/at compliant PoE and Ethernet combo ports
  • Up to 30 W output per PoE port
  • 12/24/48 VDC redundant power inputs
  • Intelligent power consumption detection and classification Redundant dual VDC power inputs
  • -40 to 75°C operating temperature range (-T models)
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector) EDS-P206A-4PoE Series: 2
EDS-P206A-4PoE-M-SC/M-ST/S-SC Series: 1

Supported functions:
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
100BaseFX Ports (multi-mode SC connector) EDS-P206A-4PoE-M-SC Series: 1
EDS-P206A-4PoE-MM-SC Series: 2
100BaseFX Ports (multi-mode ST connector) EDS-P206A-4PoE-M-ST Series: 1
EDS-P206A-4PoE-MM-ST Series: 2
100BaseFX Ports (single-mode SC connector) EDS-P206A-4PoE-S-SC/P206A-4PoE-S-SC-T: 1
EDS-P206A-4PoE-SS-SC/P206A-4PoE-SS-SC-T: 2
PoE Ports (10/100BaseT(X), RJ45 connector) 4
Standards IEEE 802.3 for 10BaseT
IEEE 802.3af/at for PoE/PoE+ output
IEEE 802.3x for flow control
IEEE 802.3u for 100BaseT(X)
Switch Properties
Processing Type Store and Forward
MAC Table Size 2K
Packet Buffer Size 768 kbits
Max. No. Of VLANs
Power Parameters
Connection 1 removable 4-contact terminal block
Input Current
Input Voltage 12/24/48 VDC
Redundant dual inputs
Power Budget Max. 120 W for total PD consumption
Max. 30 W for each PoE port
Dimensions 50.3 x 114 x 70 mm
Installation Din-rail mounting
Wall mounting
Housing Metal
Managed EthUn-Managed
Fiber OptionMulti-mode
PoE OptionPoE Ports
Valmistaja / BrandMoxa
