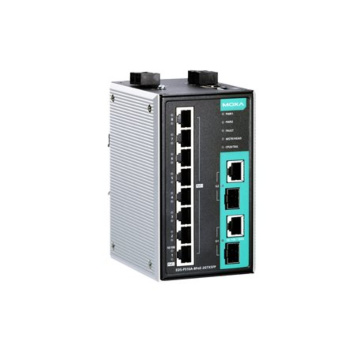

EDS-P510A -Series
Tuotenro
EDS-P510A-x
Toimitusaika 21-30pv
8+2G-port Gigabit PoE+ managed Ethernet switches with 8 IEEE 802.3af/at PoE+ ports
- 8 built-in PoE+ ports compliant with IEEE 802.3af/at
- Up to 36 W output per PoE+ port
- 3 kV LAN surge protection for extreme outdoor environments
- PoE diagnostics for powered-device mode analysis
- 2 Gigabit combo ports for high-bandwidth and long-distance communication
- Operates with 240 watts full PoE+ loading at -40 to 75°C
- Supports MXstudio for easy, visualized industrial network management
- V-ON™ ensures millisecond-level multicast data and video network recovery
| Ethernet Interface | |
| Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+) | 2 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed |
| PoE Ports (10/100BaseT(X), RJ45 connector) | 8 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed |
| Standards | IEEE 802.1D-2004 for Spanning Tree
Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3ad for Port Trunk with LACP IEEE 802.3af/at for PoE/PoE+ output IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.3z for 1000BaseSX/LX/LHX/ZX |
| Ethernet Software Features | |
| Filter | GMRP, GVRP, IGMP v1/v2, Port-based VLAN |
| Industrial Protocols | EtherNet/IP, Modbus TCP |
| Redundancy Protocols | LACP, Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2 |
| Switch Properties | |
| Processing Type | |
| MAC Table Size | 8 K |
| Packet Buffer Size | 1 Mbits |
| Max. No. Of VLANs | 64 |
| Power Parameters | |
| Connection | |
| Input Current | |
| Input Voltage | 48 VDC, Redundant dual inputs |
| Power Budget | Max. 240 W for total PD consumption Max. 36 W for each PoE port |
| Physical | |
| Dimensions | 79.2 x 135 x 105 mm |
| Installation | Din-rail mounting (optional) Wall mounting |
| Housing | Metal |
| Managed Eth | Managed |
|---|---|
| Fiber Option | SFP |
| PoE Option | PoE Ports |
| Valmistaja / Brand | Moxa |
