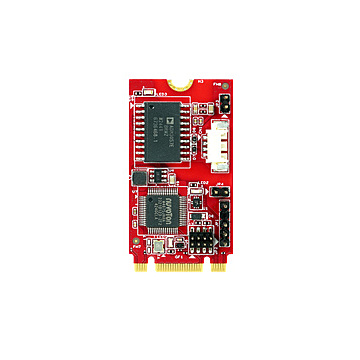

EGUC-F1S3 M.2 2242 to Single Isolated CAN FD Module
Tuotenro
EGUC-F1S3
Toimitusaika 21-30pv
M.2 2242 (USB HS) to Single Isolated CAN FD
- Baud rate up to 5 / 10 / 20 / 50 / 100 / 125 / 250 / 500 (default) / 800 / 1000K
- Data rate up to 2 / 4 / 5Mbps (For more details, refer to *Notes in the specification table below)
- CAN 2.0 up to 7,800 frame/s (RX baud rate 1M, EID, 8byte data)
- CAN FD up to 6,000 frame/s (RX baud rate 1M, data rate 5M, EID, 64byte data)
| Processor | |
| Interface | M.2 2242 B+M Key |
| Controller | - |
| Function | CAN FD |
| Input I/F | USB 2.0 High Speed (480Mbps) |
| Output Port | 1 |
| Output Connector | DB9 |
| CAN Communication | CAN FD |
| Vibration /Shock | 5G @ [7~2000Hz] 50G@0.5ms |
| Temperature | Operation : W/T -40°C ~ 85°C (Ta) Storage : -55°C ~ 95°C (Ta) |
| OS Supoort | Windows : 10 (32 / 64bit) and above version Linux : Kernel 2.6 and above (Native CDC-ACM driver), Kernel 2.6.38 and above (SocketCAN Driver), 32 / 64bit |
| PCB Dimension | 22x42x 5.55mm |
| Notes | *Data rate limitation : ● 2M supports normal rate 100k and above. ● 4M / 5M supports normal rate 250K and above. |
| Valmistaja / Brand | Innodisk |
|---|---|
| Connection | CAN bus |
| Data Interface | M.2 B-M Key |
