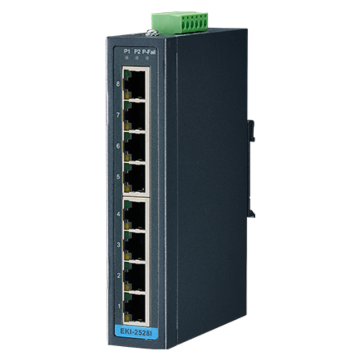

EKI-2528I
Tuotenro
EKI-2528I
Toimitusaika 14-22pv
8FE Unmanaged Ethernet Switch -40~75℃
- Provides 8 Fast Ethernet ports with Auto MDI/MDI-X
- Supports 10/100 Mbps Auto-Negotiation
- Provides compact size with DIN-rail/Wall mount, and IP30 metal mechanism
- Supports redundant 12 ~ 48 VDC power input and P-Fail relay
- Supports wide operating temperatures from -40 to 75°C
| Ethernet Communication | |
| Port Number | 8 |
| RJ-45 Port Connector | 8 x RJ-45 |
| RJ-45 Transmission speed | 10/100Mbps |
| RJ-45 Transmission Distance | 100m |
| Fiber Port Interface | - |
| Fiber Transmission Speed | - |
| Fiber Transmission Distance | - |
| Protocol support | |
| Modbux TCP | |
| Modbus RTU | |
| PROFINET | |
| Ethernet/IP | Yes |
| EtherCAT | |
| OPC UA | |
| BACnet | |
| Ethernet | |
| Certification | |
| Ethernet Standard | |
| EMI | |
| EMC | |
| Shock | - |
| Freefall | - |
| Vibration | - |
| Power | |
| Power Input | 12-48 VDC |
| Operating Current | |
| Consumption | 5w |
| PoE Information | |
| PoE Port Number | - |
| PoE Output | - |
| PoE Budget | - |
| Switch Properties | |
| MAC Table Size | |
| Packet Buffer Size | |
| Switch Fabric Speed | |
| Jumbo Frame | |
| Mechanical | |
| Dimension | 30 x 140 x 95mm |
| IP Rating | IP30 |
| Enclosure | Metal |
| Weight | 0.5kg |
| Mounting | Din-Rail / Wall |
| Environment | |
| Operating Temp | -40 ..70C |
| Storage Temp | -40 ..85C |
| Relative Humidity | 10-95% |
| Managed Eth | Un-Managed |
|---|---|
| Valmistaja / Brand | Advantech |
