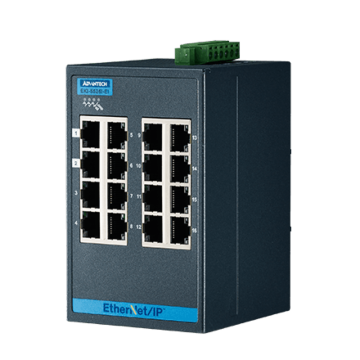

EKI-5526I-EI

Tuotenro
EKI-5526I-EI
Toimitusaika 21-30pv
16FE Managed Ethernet Switch support EtherNet/IP, -40~75℃

  • 16 ports Fast Ethernet RJ-45 (EKI-5526/I-EI)
  • Entry-Level Managed Switch
  • IXM function enables fast deployment
  • Provides EtherNet/IP EDS (Electronic Data Sheet) file, AOI (Add-On Instructions) file, and FactoryTalk® View faceplate
  • Management: SNMP v1/v2c/v3, WEB, Standard MIB, Private MIB
Ethernet Communication
Port Number 16
RJ-45 Port Connector 16 x RJ-45
RJ-45 Transmission speed 10/100Mbps
RJ-45 Transmission Distance 100m
Fiber Port Interface -
Fiber Transmission Speed -
Fiber Transmission Distance -
Protocol support
Modbux TCP
Modbus RTU
PROFINET
Ethernet/IP Yes
EtherCAT
OPC UA
BACnet
Ethernet Yes
Certification
Ethernet Standard IEEE 802.3, 802.3u, 802.3x, 802.1D, 802.1w, 802.1p, 802.1Q, 802.1x, 802.3ad, 802.3az
EMI CE, FCC Class A
EMC EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Vibration IEC 60068-2-6
Power
Power Input 12-48 VDC
Operating Current
Consumption 8W


PoE Information
PoE Port Number -
PoE Output -
PoE Budget -
Switch Properties
MAC Table Size 8K
Packet Buffer Size 4.1M bit
Switch Fabric Speed 3.2Gbps
Jumbo Frame 9,216 bytes
Mechanical
Dimension 74 x 120 x 84 mm
IP Rating IP30
Enclosure Metal
Weight 0.7kg
Mounting Din-Rail
Environment
Operating Temp -40 ..70C
Storage Temp -40 ..85C
Relative Humidity 10-95%
Lisätietoja
Managed EthManaged
Fiber OptionNone
PoE OptionNone
Valmistaja / BrandAdvantech
