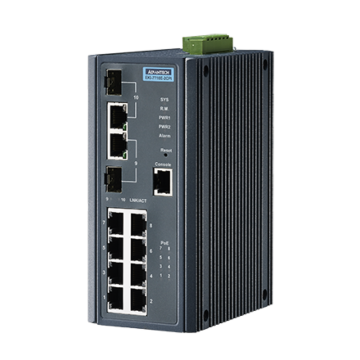

EKI-7710E-2CPI-AE

Tuotenro

EKI-7710E-2CPI-AE

Toimitusaika 21-30pv

8FE PoE and 2G Combo Managed Ethernet Switch, IEEE802.3af/at, 24~48VDC, -40~75℃

8 x IEEE 802.3 af/at PoE Fast Ethernet ports + 2 x Gigabit Copper/SFP combo ports
SFP socket for Easy and Flexible Fiber Expansion
Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
IXM function enables fast deployment
Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB, Private MIB
-40 ~ 75°C wide-range operating temperature (EKI-7710E-2CPI)
Dual 24~48 V DC power input and 1 relay output

Ethernet Communication
Port Number	10
RJ-45 Port Connector	8 x RJ-45
RJ-45 Transmission speed	10/100Mbps / 10/100/1000Mbps
RJ-45 Transmission Distance	100m
Fiber Port Interface	SFP
Fiber Transmission Speed	100/1000 Mbps
Fiber Transmission Distance	Up to 110 km
Certification
Ethernet Standard	IEEE 802.1p, 802.3ad, 802.1x, 802.1D, 802.1s, 802.1w, 802.3af/at
EMI	CE, FCC Class A
EMC	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
Power
Power Input	24-48 VDC
Operating Current	0.25A @ 48VDC (system)
Consumption	12.1W

PoE Information
PoE Port Number	8
PoE Output	-
PoE Budget	-
Switch Properties
MAC Table Size	8K
Packet Buffer Size	4.1M bit
Switch Fabric Speed	5.6Gbps
Jumbo Frame	9,216 bytes
Mechanical
Dimension	74 152 x 105mm
IP Rating	IP30
Enclosure	Metal
Weight	1.2kg
Mounting	DIN-rail, Wall
Environment
Operating Temp	-10 ..60C
Storage Temp	-40 ..85C
Relative Humidity	10-95%
