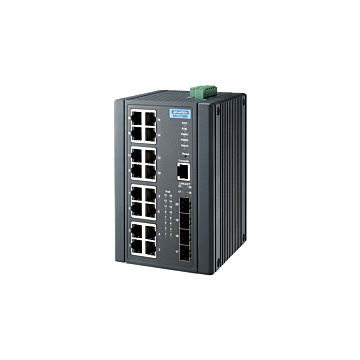

EKI-7720G-4FPI

Tuotenro

EKI-7720G-4FPI

Toimitusaika 21-30pv

16GE PoE + 4G SFP Ports Managed Industrial PoE Switch

16 IEEE 802.3af/at PoE ports
Up to 420W power budget
SFP socket for easy and flexible fiber expansion
Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D)
IXM function enables fast deployment
Security: 802.1x (port-based, MD5/TLS/TTLS/PEAP encryption), RADIUS
Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
-40 ~ 70°C wide-range operating temperature
Dual 48 ~ 57VDC power inputs and 1 x relay output

Ethernet Communication
Port Number	16
RJ-45 Port Connector	16 x RJ-45
RJ-45 Transmission speed	10/100/1000Mbps
RJ-45 Transmission Distance	100m
Fiber Port Interface	SFP
Fiber Transmission Speed	100/1000 Mbps
Fiber Transmission Distance	Up to 110 km
Certification
Ethernet Standard	IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1D, 802.1w, 802.1p, 802.1Q, 802.1x, 802.3ad
EMI	CE, FCC Class A
EMC	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Shock	IEC 60068-2-27
Freefall	-
Vibration	IEC 60068-2-6
Power
Power Input	48-57 VDC
Operating Current	0.3A @ 48VDC (system)
Consumption	16W

PoE Information
PoE Port Number	16
PoE Output	25.5W
PoE Budget	420W
Switch Properties
MAC Table Size	8K
Packet Buffer Size	4.1M bit
Switch Fabric Speed	16Gbps
Jumbo Frame	9,216 bytes
Mechanical
Dimension	97 x 152 x105mm
IP Rating	IP30
Enclosure	Metal
Weight	1.2kg
Mounting	DIN-rail, Wall
Environment
Operating Temp	-40 ..70C
Storage Temp	-40 ..85C
Relative Humidity	10-95%
