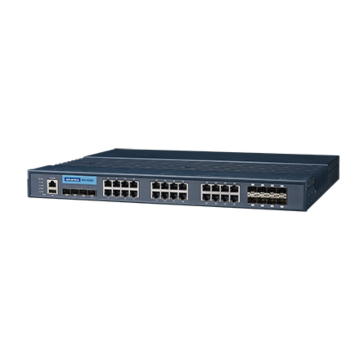

EKI-9228G-8CMI

Tuotenro
EKI-9228G-8CMI
Toimitusaika 21-30pv

IEC61850-3 20GE + 8GE Combo L2 Managed Switch, 48DC

  • 16 x Gigabit RJ-45 ports + 4 Gigabit x SFP ports + 8 x Gigabit Combo ports
  • SFP socket for Easy and Flexible Fiber Expansion
  • Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
  • Security:802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption),HTTPS,SSH and SNMPv3
  • Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D),MSTP
  • Dual Power input and 2 relay output
  • -40 ~ 85˚C wide-range operating temperature
Ethernet Communication
Port Number 26
RJ-45 Port Connector 16 x RJ-45
8 x Combo RJ-45/SFP
RJ-45 Transmission speed 10/100M/1000Mbps
RJ-45 Transmission Distance 100m
Fiber Port Number 4
Fiber Port Interface SFP
Fiber Transmission Speed Depends on fiber module
Fiber Transmission Distance Depends on fiber module
Protocol support
Modbux TCP
Modbus RTU
PROFINET
Ethernet/IP Yes
EtherCAT
OPC UA
BACnet
Ethernet Yes
Certification
Ethernet Standard IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.1D, 802.1w,802.1p, 802.1Q, 802.1X, 802.3ad, 802.3ab
EMI CE, FCC Class A
EMC EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 4), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 5), EN 61000-6-4
Shock IEC 60068-2-27
Freefall IEC 60068-2-32
Vibration IEC 60068-2-6
Power
Power Input 48V DC
Operating Current
Consumption 35W

PoE Information
PoE Port Number -
PoE Output -
PoE Budget -
Switch Properties
MAC Table Size 8K
Packet Buffer Size -
Switch Fabric Speed -
Jumbo Frame 9 kb
Mechanical
Dimension 438 x 44 x 315.2mm
IP Rating IP30
Enclosure Metal
Weight
Mounting 1U 19” rack mount
Environment
Operating Temp -40 ..85C
Storage Temp -40 ..85C
Relative Humidity 10-95%
Lisätietoja
Managed EthManaged
Fiber OptionSFP
PoE OptionNone
Valmistaja / BrandAdvantech
