ET-M8196F

Tuotenro
ET-M8196F
Toimitusaika 21-30pv

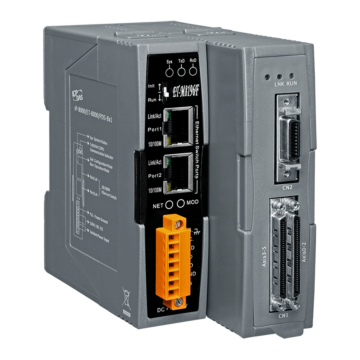

Ethernet Remote Unit with High-speed 6-axis Motion Control Module

  • Remote control via Modbus TCP
  • DSP-based motion control module
  • Pulse output rate: 4 MHz (Max.)
  • Maximum encoder input frequency: 12 MHz
  • Independent 6-axis motion control
  • 2 to 6 axes linear / 2 to 3 axes circular / 3 axes helical interpolation functions
  • Continuous interpolation
  • 4-step home mode with auto-searching
  • Synchronized start motion
  • Programmable T/S-curve acceleration and deceleration
  • Software limit protection
  • Software FIFO for arbitrary curve motion
  • High-speed position latch
  • High-speed compare trigger and auto-increment compare mode
  • Expandable remote I/O: 128 DI and 128 DO via a two-wire FRnet interface
