FPC-9002-P6

Toimitusaika 21-30pv
Tuotenro
FPC-9002-P6

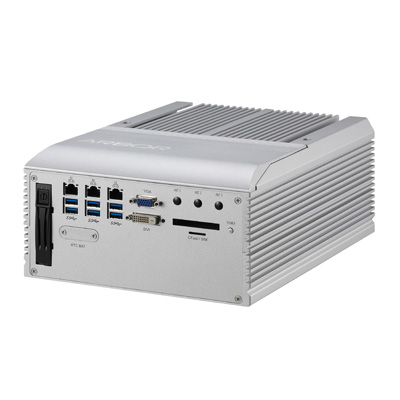

Machine Vision Controller with Intel Xeon E3/6th & 7th Generation Core i7/i5/i3 Processor with 6 GbE PoE
Ominaisuudet
* Wide Range DC power input (19~36V)
* DP x1+HDMI x 1 +VGA x1+DVI x1 (supporting 3 independent display)
* Power on/off delay control/ Configurable ignition power control
* TPM2.0 support (optional)
* RTC Battery service windows support
* Two-mPCIe for Optional WiFi/3G/4G/GPS or I/O expansion supported
* 2 x SATA SSD (1 x removable, 1 x fixed), supporting RAID 0,1
* Front-accessible I/O support
* SMART FAN control support
* 6 x 802.3af Gigabit PoE ports
Spesifikaatiot
Processor Core Logic System

CPU:
Intel® 6th & 7th Gen. Core™ i3/i5/i7
Intel® Xeon E3/6th

Chipset:
Intel C236

System memory:
2 x 260-pin DDR4 SO-DIMM sockets, supporting
2133 MHz SDRAM up to 32GB

Graphics
Integrated Intel® HD

Ethernet
2 x Intel® WGI211AT PCIe controllers
1 x Intel® WGI219LM PCIe controllers w/ iAMT
6 x Intel® WGI211AT PCIe controllers for PoE

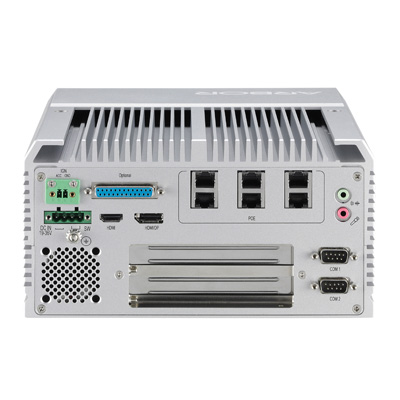

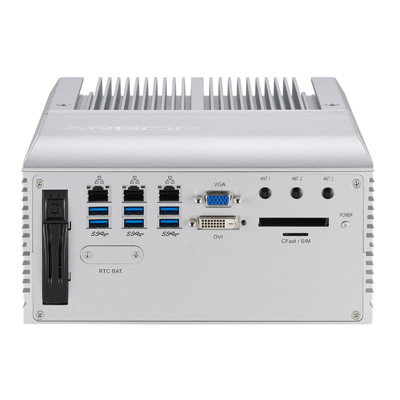

I/O expansion
2x COM RS-232/422/485 configurable
6 x USB 3.0/ 2.0 ports
3 x RJ-45 ports for Gigabit Ethernet
6 x RJ-45 ports for PoE
1 x DP
2 x HDMI
1 x VGA
1 x DVI-D
1 x DB25 connector for 1 x DIO (8 x IN, 8 x OUT) port
(LPT port, optional)
Mic-in/Line-out

Power Supply
DC 9~36V input

Expansion Slot
1 x Full-size mini-card socket
1 x half-size mini-card socket
1 x PCIe x16 slot
1 x PCIe x 8 slot (via x 4 lanes)

Storage
2 x 2.5” drive bays (1 x removable, 1 x fixed )
1 x CFast socket, can be outside accessible

Mechanical
Construction:Aluminum alloy
Mounting: Wall-mount
Dimensions: 225 x 292 x 120mm


Environment Specifications
Operating Temp: -20 ~ 55°C , ambient w/ air flow
(with industrial hdd)
Storage Temp: -40 ~ 85°C
Relative Humidity: 10 ~ 95% @ 40°C (non-condensing)
